ISO Flow Cups/Ford Viscosity Cups/DIN Cup/Din Dip Cup/Zahn Cups/NK-2 Iwata Cups/Flow Cup Stands

Includes: ISO Flow cups, Ford Viscosity cups, DIN Cup, DIN Dip Cup, Zahn Cups, NK-2 Iwata Cups, Flow Cup Stands





ISO Flow Cups

Recommended for international use, provides different efflux time. Body made of anodized aluminum; stainless steel orifice, interior polished.

Technical specifications

Cat.No. Cup No. Orifice(mm) Range(cSt) Efflux (Sec)
PS 1020/3 3 7-42 3 30-100
PS 1020/4 4 34-135 4 30-100
PS 1020/5 5 5 91-326 30-100
PS 1020/6 6 188-684 30-100

Standards

ISO 2431, ASTM D 5125

ISO Flow Cups

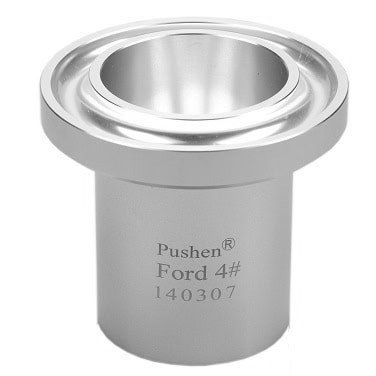

Ford Viscosity Cups

For low viscosity liquids. Body made of aluminum; copper alloy orifice, interior polished.

Technical specifications

Cat. No. Cup No. Orifice(mm) Range(cSt) Efflux(Sec)
PS 1021/1 1 2.10 10-35 55-100
PS 1021/2 2 2.53 25-120 40-100
PS 1021/3 3 3.40 49-220 25-105
PS 1021/4 4 4.12 70-370 20-105
PS 1021/5 5 5.20 200-1200 20-105

Standards

ASTM D 1200

Ford Viscosity Cups

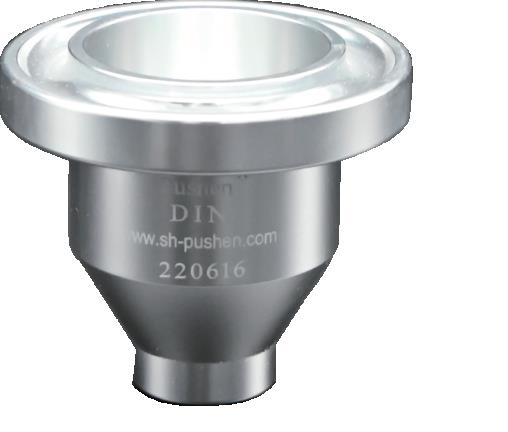

DIN Cup

Are designed for quick, approximate determination of efflux times for paints, And similar liquids in workshops, at paint manufacturers and customers.

Technical specifications

Cat.No. PS 1022/1
Capacity 100 ml
Orifice Dia $4\pm0.02mm$
Efflux Time 20-110 sec
Test Range 96-683 cSt

Standards

DIN 53211, DIN 220611

DIN Cup

DIN Dip Cup

Dip Cup are designed for quick, approximate determination of efflux times for paints, And similar liquids in workshops, at paint manufacturers and customers.

Technical specifications

Cat.No. PS 1022/2
Capacity 100 ml
Orifice Dia 4±0.02mm
Efflux Time 20-110 sec
Test Range 96-683 cSt
Standards DIN 53211

DIN Dip Cup

Zahn Cups

Can be used in shops, factor for quickly checking and adjusting the viscosity of many different types of liquids.

Technical specifications

Cat.No. Cup No. Orifice(mm) Range (cSt) Efflux(Sec)
PS 1024/1 1 1.98 5-60 35-80
PS 1024/2 2 2.74 20-250 20-80
PS 1024/3 3 3.76 100-800 20-80
PS 1024/4 4 4.27 200-1200 20-80
PS 1024/5 5 5.28 400-1800 20-80

Standards

ASTM D 4212

Zahn Cups

NK-2 Iwata Cups

It can quickly measure the flow time of paint and other similar liquids.

Technical specifications

Cat.No. PS 1025
Orifice $3.5\pm0.01mm$
Capacity $50\pm2ml$
Material SS with Nickel-plated
Efflux Time 10-60 sec
Test Range 70-370 cSt
Dimensions $280\times40\times40~mm$
Shipping Weight 0.5 kg.

NK-2 Iwata Cups

Flow cup stands

The viscosity cup bracket is made of aluminum alloy, with light weight and high strength. The corrosion degree of the corrosion resistance of aluminum alloy has been improved to a certain extent. The threaded connection can be disassembled with three legs support. It can be adapted to most types of viscosity cups.

Technical specifications

Cat.No. PS 1026
Circle diameter 57 mm
Vertical height 230 mm.
Image Flow cup stands
