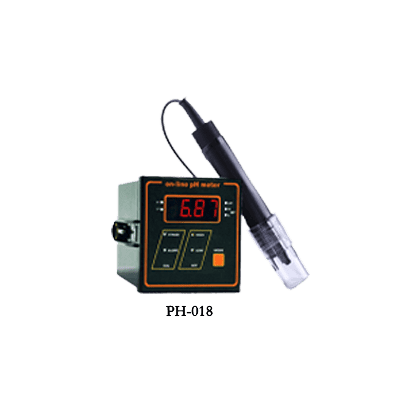

PH-018/ORP-019

Industrial Online pH/ORP Controller

SKU: ph-018 Category: Tag:

Description

Industrial on-line pH /

ORP Controller

Product Description

  • The pH Controllers are packaged in a 1/4 DIN panel mount controller box with dual SPDT Hi/ Lo relays, manual set points and calibration potentiometers set into the front of the pH controller panel.
  • The pH controllers feature an isolated 4-20 mA current output.
  • The pH Controllers require a Pt-100 ATC probe or a simulation resistor for temperature compensation.

Main Features

Using MCU control, easy to operate simple; panel-mounted structural features, ease of installation, operation and maintenance With isolated output (4 ∼ 20) mA DC signal, the output upper and lower limits can be adjusted stepless output With automatic upper and lower limit alarm.

Used in chemical, oil refining, metallurgy, pharmaceutical, power plants and environmental protection and other areas of water quality monitoring.

Technical Specification

  • Automatic temperature compensation: 0°C ∼ 100°C
  • Environment: 0°C ∼ 50°C; RH ≤ 95%
  • Power Supply: Fit for all parts of the worlds
  • Dimensions(mm): 96 x 96 x 160
  • Weight: 950g
Model PH-018 ORP-019
Measuring Range 0.00∼14.00pH -1999 ∼ 1999mV
Resolution 0.01pH 1mV
Accuracy ±0.02pH ±1mV
Stability 0.02pH/24h ±1mV
Output current 4-20mA 4-20mA
Warning accuracy ±0.02pH ±1mV
