Production Introduction

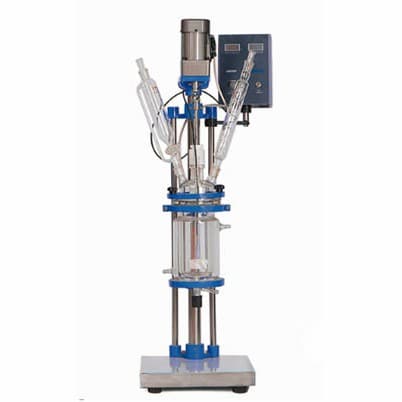

Jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
Features
* GG17 high borosilicate glass, with good chemical and physical properties.
* The evaporation and back-flow of reaction material can be controlled.
* The heat of reaction could be taken away quickly through water, cycling in the jacketed glass.
* The design of large bottle mouth, easier to clean.
* It can be used as a distillation syntheses device.
* The sealing performance is 0.098 Mpa.
* LCD display, easier and more convenient to measure temperature.
Optional Equipment
* Circulating water vacuum pump:(JGR-1L~5L,recommend mode SHZ-DIII,JGR-10L~100L, recommend model SHZ-95B)
* Refrigerated Circulator
* Circulating water/oil bath
Technical Parameter
| Model | JGR-1L | JGR-2L | JGR-3L | JGR-5L | JGR -10L | JGR -20L | JGR -30L | JGR -50L | JGR -100L | ||
| Reaction Flask Capacity | 1L | 2L | 3L | 5L | 10L | 20L | 30L | 50L | 100L | ||
| Stirring Power | 60W | 120W | 180W | ||||||||
| Stirring Speed | 0~600rpm(Max.1300 customized) | ||||||||||
| Stirring shaft Diameter | 12mm | 14mm | 16mm | 18mm | |||||||
| Motor Torque(g/cm) | 2000 | 2400 | 4800 | 1000 | 1200 | 1500 | 3000 | ||||
| Power Supply | AC110/220V, 50/60Hz | ||||||||||
| Package Size(W*D*H)mm | 1250*550*550 | 1330*550*550 | 1300*550*600 | 1520*600*680 | 1620*600*680 | 1950*820*900 | |||||
| Gross Weight(kg) | 40 | 45 | 91 | 95 | 110 | 116 | 160 | ||||
