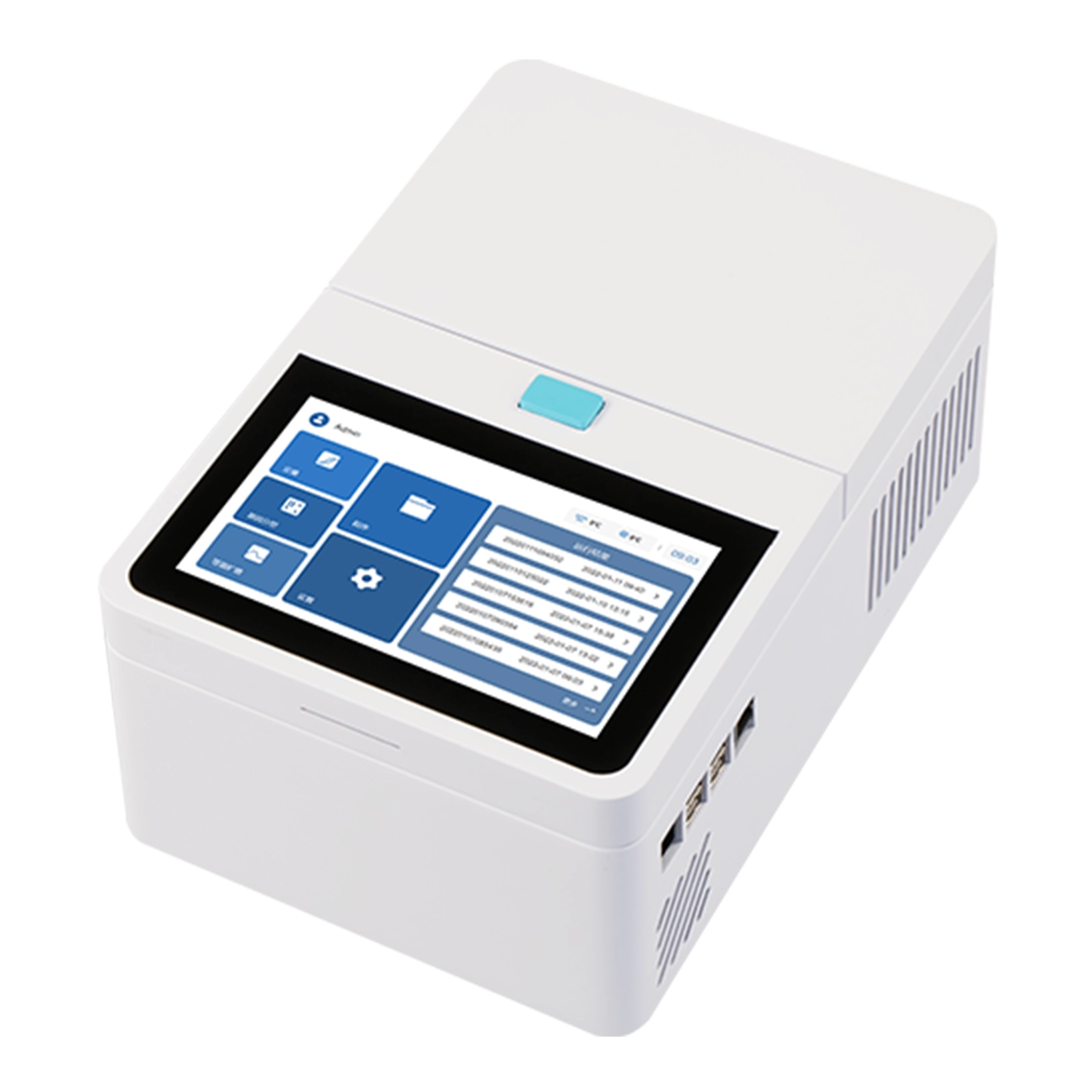

Esan-Gene 162/164 real-time PCR system, with 2-channel/4-channel, 16-well, portable and convenient for on-site rapid inspection and quarantine, disease prevention and control, food safety, agriculture, forestry and biochemistry and other occasions, is a real-time detection portable QPCR.
•Stand-alone use, diverse analysis
A single machine can complete operations such as setting, testing, judging, and saving.
Multiple analysis modes to meet monitoring requirements: qualitative/quantitative detection, melting curve, genotyping, isothermal amplification, etc.
•Efficient detection and stable results
LED light source: maintenance-free, high brightness, high stability.
High detection throughput: can support up to four channels, 16 samples per run, efficient and accurate.
•Quick start, simple and convenient
7-inch touch screen, windows operating system, simple and convenient operation.
Negative and positive results are automatically interpreted without other calculations.
Equipped with USB, network cable interface, data download is convenient, and can be directly connected to the printer for printing.
•Light and portable, high adaptability
Small size: 200 mm×297 mm×148 mm.
Light weight for easy handling and portability.
Spec:
| Model | Esan-Gene 162 |
| Detection throughput | 16-well |
| Sample volume | 15-100μL |
| Consumable | 0.2 mL thin wall transparent 8-strip tube |
| Consumable | 0.2 mL thin wall transparent single tube |
| Dynamic range | 1-10^10 Copies |
| Linearity | |r| ≥ 0.999 |
| Number of channels | 2 channels |
| Number of channels | Channel 1 (470 nm-510 nm) Channel 2 (530 nm-565 nm) |
| Excitation light source | LED (maintenance free) |
| Detection element | PD |
| Channel parameters (by instrument model) | F1: FAM, SYBR GreenI etc. |
| Channel parameters (by instrument model) | F2: HEX, JOE, VIC etc. |
| Temperature control mode | Block |
| Temperature range | 4~99.9 °C |
| Temperature control method | Semiconductor chilling plate |
| Temperature accuracy | ±0.15 °C |
| Temperature control precision | 0.1 °C |
| Temperature uniformity | ±0.2 °C @95 °C |
| Maximum heat-up rate | 6 °C/s |
| Maximum cooling rate | 6 °C/s |
| Average heat-up rate | 4 °C/s |
| Average cooling rate | 4 °C/s |
| Melting temperature | Minimum difference 0.1 °C |
| Thermo lid temperature | 30~110 °C |
| Input power | 100-240 V AC 50-60 Hz |
| Maximum power | 200 W |
| Security protection and alarm | Support short circuit, open circuit and over temperature protection and alarm |
| Dimension (W×D×H) | 200×297×148 mm |
| Weight | 5.9 kg |
