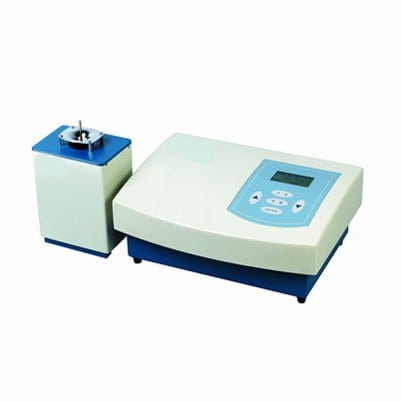

BDSP-1A

Dropping-point and softening-point apparatus

Widely used to component control and quality test of tar, asphalt, paraffin, resin, fat, rosin, lubricant, Vaseline, medical ointment, ointment, suppository, edible oil and grease.

1. Measuring concentration, polymerization degree, refractoriness of amorphous body highly polymerized compound.

2. Photoelectric test, temperature program control, LCD display, high precision and stable performance.

Model BDSP-1A
MeasuringRange RT~300℃
Resolution 0.1℃
LinearHeating Rates 0.2, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0℃/min
TemperatureAccuracy 0.5℃(≤200℃)

1℃(>200℃)

Cup φ9.9mm (inside diameter),

R4.6±0.1mm (bottom radius)

Hole Size φ2.80mm (dropping- point),

φ6.35mm (softening-point),

φ5.00mm (user choose)

Ball lead ball (φ8mm, 3.2±0.1g, according to ASTM)

steel ball (3/8〞, according to GB2728-1988; 5/6〞user choose)

PowerSupply AC 220V/110V±10%, 50/60HZ
ExternalSize 560*240*110mm
PackageSize 720*370*280mm
G.W 11kg
