Transmission curves
Tranmission measured on empty cells – window thickness 1.25mm x 2 (including surface reflection loss)
Standard cuvette with lid Q-1 Series
Standard cuvette with lid is suitable for various spectrophotometers, the matched Teflon lid can prevent solvent from the leakage and also strength corrosion resistance.
| Product number |
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-1 |
I-1 |
G-1 |
45×12.5×3.5 |
1 |
10 |
0.35 |
| Q-2 |
I-2 |
G-2 |
45×12.5×4.5 |
2 |
10 |
0.70 |
| Q-3 |
I-3 |
G-3 |
45×12.5×7.5 |
5 |
10 |
1.7 |
| Q-4 |
I-4 |
G-4 |
45×12.5×12.5 |
10 |
10 |
3.5 |
| Q-5 |
I-5 |
G-5 |
45×12.5×22.5 |
20 |
10 |
7.0 |
| Q-6 |
I-6 |
G-6 |
45×12.5×32.5 |
30 |
10 |
10.5 |
| Q-7 |
I-7 |
G-7 |
45×12.5×42.5 |
40 |
10 |
14 |
| Q-8 |
I-8 |
G-8 |
45×12.5×52.5 |
50 |
10 |
17.5 |
| Q-9 |
I-9 |
G-9 |
45×12.5×102.5 |
100 |
10 |
35.0 |
Standard cuvette with stopper Q-13 Series
The stopper is able to prevent solvent from the leakage , this cuvette is suitable for testing hazardous solvent
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-13 |
I-13 |
G-13 |
45×12.5×7.5 |
5 |
10 |
1.7 |

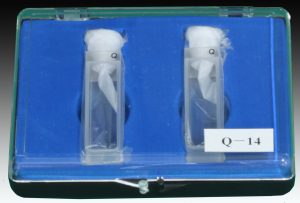

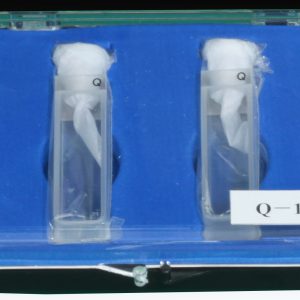

| Q-14 |
I-14 |
G-14 |
45×12.5×12.5 |
10 |
10 |
3.5 |
| Q-15 |
I-15 |
G-15 |
45×12.5×22.5 |
20 |
10 |
7.0 |
| Q-16 |
I-16 |
G-16 |
45×12.5×32.5 |
30 |
10 |
10.5 |
| Q-17 |
I-17 |
G-17 |
45×12.5×42.5 |
40 |
10 |
14 |
| Q-18 |
I-18 |
G-18 |
45×12.5×52.5 |
50 |
10 |
17.5 |
| Q-19 |
I-19 |
G-19 |
45×12.5×102.5 |
100 |
10 |
35.0 |
Semi-micro cuvette with black walls and lid Q-23 Series
The semi-micro cuvette is made of black and clear quartz, partly avoids light and saves solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-23 |
I-23 |
G-23 |
45×12.5×7.5 |
5 |
4 |
0.7 |
| Q-24 |
I-24 |
G-24 |
45×12.5×12.5 |
10 |
4 |
1.4 |
| Q-25 |
I-25 |
G-25 |
45×12.5×22.5 |
20 |
4 |
2.8 |
| Q-26 |
I-26 |
G-26 |
45×12.5×32.5 |
30 |
4 |
4.2 |
| Q-27 |
I-27 |
G-27 |
45×12.5×42.5 |
40 |
4 |
5.6 |
| Q-28 |
I-28 |
G-28 |
45×12.5×52.5 |
50 |
4 |
7 |
| Q-29 |
I-29 |
G-29 |
45×12.5×102.5 |
100 |
4 |
14 |

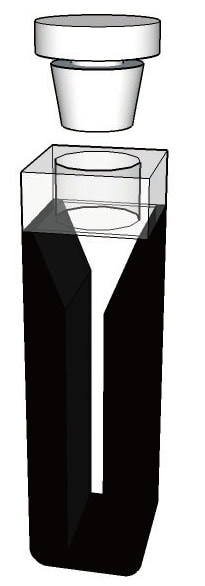

Semi-micro cuvette with black walls and Teflon stopper Q-33 Series
The stopper is able to prevent solvent from the leakage, this cuvette is suitable for testing hazardous solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-33 |
I-33 |
G-33 |
45×12.5×7.5 |
5 |
4 |
0.7 |
| Q-34 |
I-34 |
G-34 |
45×12.5×12.5 |
10 |
4 |
1.4 |
| Q-35 |
I-35 |
G-35 |
45×12.5×22.5 |
20 |
4 |
2.8 |
| Q-36 |
I-36 |
G-36 |
45×12.5×32.5 |
30 |
4 |
4.2 |
| Q-37 |
I-37 |
G-37 |
45×12.5×42.5 |
40 |
4 |
5.6 |
| Q-38 |
I-38 |
G-38 |
45×12.5×52.5 |
50 |
4 |
7 |
| Q-39 |
I-39 |
G-39 |
45×12.5×102.5 |
100 |
4 |
14 |
Micro cuvette with black walls and lid Q-43 Series
The semi-micro cuvette is made of black and clear quartz, partly avoids light and saves solvent.
| Product number |
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-43 |
I-43 |
G-43 |
45×12.5×7.5 |
5 |
2 |
0.35 |
| Q-44 |
I-44 |
G-44 |
45×12.5×12.5 |
10 |
2 |
0.7 |
| Q-45 |
I-45 |
G-45 |
45×12.5×22.5 |
20 |
2 |
1.4 |
| Q-46 |
I-46 |
G-46 |
45×12.5×32.5 |
30 |
2 |
2.1 |
| Q-47 |
I-47 |
G-47 |
45×12.5×42.5 |
40 |
2 |
2.8 |
| Q-48 |
I-48 |
G-48 |
45×12.5×52.5 |
50 |
2 |
3.5 |
| Q-49 |
I-49 |
G-49 |
45×12.5×102.5 |
100 |
2 |
7 |
Micro cuvette with black walls and stopper Q-53 Series
The stopper is able to prevent solvent from the leakage, this cuvette is suitable for testing hazardous solvent.
| Product number |
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-53 |
I-53 |
G-53 |
45×12.5×7.5 |
5 |
2 |
0.35 |
| Q-54 |
I-54 |
G-54 |
45×12.5×12.5 |
10 |
2 |
0.7 |
| Q-55 |
I-55 |
G-55 |
45×12.5×22.5 |
20 |
2 |
1.4 |
| Q-56 |
I-56 |
G-56 |
45×12.5×32.5 |
30 |
2 |
2.1 |
| Q-57 |
I-57 |
G-57 |
45×12.5×42.5 |
40 |
2 |
2.8 |
| Q-58 |
I-58 |
G-58 |
45×12.5×52.5 |
50 |
2 |
3.5 |
| Q-59 |
I-59 |
G-59 |
45×12.5×102.5 |
100 |
2 |
7 |
Standard cuvette with lid and round bottom Q-101 Series
Standard cuvette with lid is suitable for various spectrophotometers, the matched Teflon lid can prevent solvent from the leakage and also strength corrosion resistance.
| Product number |
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-101 |
I-101 |
G-101 |
45×12.5×3.5 |
1 |
10 |
0.35 |
| Q-102 |
I-102 |
G-102 |
45×12.5×4.5 |
2 |
10 |
0.70 |
| Q-103 |
I-103 |
G-103 |
45×12.5×7.5 |
5 |
10 |
1.7 |
| Q-104 |
I-104 |
G-104 |
45×12.5×12.5 |
10 |
10 |
3.5 |
| Q-105 |
I-105 |
G-105 |
45×12.5×22.5 |
20 |
10 |
7.0 |
| Q-106 |
I-106 |
G-106 |
45×12.5×32.5 |
30 |
10 |
10.5 |
| Q-107 |
I-107 |
G-107 |
45×12.5×42.5 |
40 |
10 |
14 |
| Q-108 |
I-108 |
G-108 |
45×12.5×52.5 |
50 |
10 |
17.5 |
| Q-109 |
I-109 |
G-109 |
45×12.5×102.5 |
100 |
10 |
35.0 |
Standard cuvette with Teflon stopper and round bottom Q-111 series
Cuvette with different pathlength is assembled with Teflon stopper on top, which is suitable for testing hazardous sovlent.
| Product number |
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-111 |
I-111 |
G-111 |
45×12.5×3.5 |
1 |
10 |
0.35 |
| Q-112 |
I-112 |
G-112 |
45×12.5×4.5 |
2 |
10 |
0.70 |
Standard cuvette with Teflon stopper and round bottom Q-113 series
The stopper is able to prevent solvent from the leakage, this cuvette is suitable for testing hazardous solvent.
| Product number |
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-113 |
I-113 |
G-113 |
45×12.5×7.5 |
5 |
10 |
1.7 |
| Q-114 |
I-114 |
G-114 |
45×12.5×12.5 |
10 |
10 |
3.5 |
| Q-115 |
I-115 |
G-115 |
45×12.5×22.5 |
20 |
10 |
7.0 |
| Q-116 |
I-116 |
G-116 |
45×12.5×32.5 |
30 |
10 |
10.5 |
| Q-117 |
I-117 |
G-117 |
45×12.5×42.5 |
40 |
10 |
14.0 |
| Q-118 |
I-118 |
G-118 |
45×12.5×52.5 |
50 |
10 |
17.5 |
| Q-119 |
I-119 |
G-119 |
45×12.5×102.5 |
100 |
10 |
35.0 |
Micro cuvette with black walls and lid Q-123 series
The micro cuvette is made of black and clear quartz, partly avoids light and saves solvent.
| Product number |
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-123 |
I-123 |
G-123 |
45×12.5×7.5 |
5 |
1 |
0.17 |
| Q-124 |
I-124 |
G-124 |
45×12.5×12.5 |
10 |
1 |
0.35 |
| Q-125 |
I-125 |
G-125 |
45×12.5×22.5 |
20 |
1 |
0.7 |
| Q-126 |
I-126 |
G-126 |
45×12.5×32.5 |
30 |
1 |
1 |
| Q-127 |
I-127 |
G-127 |
45×12.5×42.5 |
40 |
1 |
1.4 |
| Q-128 |
I-128 |
G-128 |
45×12.5×52.5 |
50 |
1 |
1.75 |
| Q-129 |
I-129 |
G-129 |
45×12.5×102.5 |
100 |
1 |
3.5 |
Micro cuvette with black walls and lid Q-133 series
The micro cuvette is made of black and clear quartz, partly avoids light and saves solvent.
| Product number |
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-133 |
I-133 |
G-133 |
45×12.5×7.5 |
5 |
3 |
0.5 |
| Q-134 |
I-134 |
G-134 |
45×12.5×12.5 |
10 |
3 |
1.0 |
| Q-135 |
I-135 |
G-135 |
45×12.5×22.5 |
20 |
3 |
2.1 |
| Q-136 |
I-136 |
G-136 |
45×12.5×32.5 |
30 |
3 |
3.15 |
| Q-137 |
I-137 |
G-137 |
45×12.5×42.5 |
40 |
3 |
4.2 |
| Q-138 |
I-138 |
G-138 |
45×12.5×52.5 |
50 |
3 |
5.25 |
| Q-139 |
I-139 |
G-139 |
45×12.5×102.5 |
100 |
3 |
10.5 |
Semi-micro cuvette with black walls and lid Q-143 series
The semi-micro cuvette is made of black and clear quartz, partly avoids light and saves solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-143 |
I-143 |
G-143 |
45×12.5×7.5 |
5 |
5 |
0.85 |
| Q-144 |
I-144 |
G-144 |
45×12.5×12.5 |
10 |
5 |
1.75 |
| Q-145 |
I-145 |
G-145 |
45×12.5×22.5 |
20 |
5 |
3.5 |
| Q-146 |
I-146 |
G-146 |
45×12.5×32.5 |
30 |
5 |
5.25 |
| Q-147 |
I-147 |
G-147 |
45×12.5×42.5 |
40 |
5 |
7 |
| Q-148 |
I-148 |
G-148 |
45×12.5×52.5 |
50 |
5 |
8.75 |
| Q-149 |
I-149 |
G-149 |
45×12.5×102.5 |
100 |
5 |
17.5 |
Standard fluorescence cuvette with lid Q-203 series
This fused cuvette has four transparant walls, which is suitable for fluorescence test.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-203 |
I-203 |
G-203 |
45×12.5×7.5 |
5 |
10 |
1.7 |
| Q-204 |
I-204 |
G-204 |
45×12.5×12.5 |
10 |
10 |
3.5 |
| Q-205 |
I-205 |
G-205 |
45×12.5×22.5 |
20 |
10 |
7.0 |
| Q-206 |
I-206 |
G-206 |
45×12.5×32.5 |
30 |
10 |
10.5 |
| Q-207 |
I-207 |
G-207 |
45×12.5×42.5 |
40 |
10 |
14.0 |
| Q-208 |
I-208 |
G-208 |
45×12.5×52.5 |
50 |
10 |
17.5 |
| Q-209 |
I-209 |
G-209 |
45×12.5×102.5 |
100 |
10 |
35.0 |
Standard fluorescence cuvette with stopper Q-213 series
This cuvette has four transparant walls, which is suitable for fluorescence test. Its Teflon stopper can prevent solvent from the leakage and also strength corrosion resistance.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-213 |
I-213 |
G-213 |
45×12.5×7.5 |
5 |
10 |
1.7 |
| Q-214 |
I-214 |
G-214 |
45×12.5×12.5 |
10 |
10 |
3.5 |
| Q-215 |
I-215 |
G-215 |
45×12.5×22.5 |
20 |
10 |
7.0 |
| Q-216 |
I-216 |
G-216 |
45×12.5×32.5 |
30 |
10 |
10.5 |
| Q-217 |
I-217 |
G-217 |
45×12.5×42.5 |
40 |
10 |
14.0 |
| Q-218 |
I-218 |
G-218 |
45×12.5×52.5 |
50 |
10 |
17.5 |
| Q-219 |
I-219 |
G-219 |
45×12.5×102.5 |
100 |
10 |
35.0 |
Micro cuvette with frosted walls and lid Q-233 series
The micro frosted cuvette has different dimensions in path width, or even the path width can be customised. This product is able to save your solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-233 |
I-233 |
G-233 |
45×12.5×7.5 |
5 |
1 |
0.17 |
| Q-234 |
I-234 |
G-234 |
45×12.5×12.5 |
10 |
1 |
0.35 |
| Q-235 |
I-235 |
G-235 |
45×12.5×22.5 |
20 |
1 |
0.70 |
| Q-236 |
I-236 |
G-236 |
45×12.5×32.5 |
30 |
1 |
1.0 |
| Q-237 |
I-237 |
G-237 |
45×12.5×42.5 |
40 |
1 |
1.4 |
| Q-238 |
I-238 |
G-238 |
45×12.5×52.5 |
50 |
1 |
1.75 |
| Q-239 |
I-239 |
G-239 |
45×12.5×102.5 |
100 |
1 |
3.5 |
Micro cuvette with frosted walls and lid Q-243 series
The frosted cuvette has different dimensions in path width, or even the path width can be customised. This product is able to save your solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-243 |
I-243 |
G-243 |
45×12.5×7.5 |
5 |
2 |
0.35 |
| Q-244 |
I-244 |
G-244 |
45×12.5×12.5 |
10 |
2 |
0.7 |
| Q-245 |
I-245 |
G-245 |
45×12.5×22.5 |
20 |
2 |
1.4 |
| Q-246 |
I-246 |
G-246 |
45×12.5×32.5 |
30 |
2 |
2.1 |
| Q-247 |
I-247 |
G-247 |
45×12.5×42.5 |
40 |
2 |
2.8 |
| Q-248 |
I-248 |
G-248 |
45×12.5×52.5 |
50 |
2 |
3.5 |
| Q-249 |
I-249 |
G-249 |
45×12.5×102.5 |
100 |
2 |
7.0 |
Micro cuvette with frosted walls and lid Q-253 series
The frosted cuvette has different dimensions in path width, or even the path width can be customised. This product is able to save your solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-253 |
I-253 |
G-253 |
45×12.5×7.5 |
5 |
3 |
0.5 |
| Q-254 |
I-254 |
G-254 |
45×12.5×12.5 |
10 |
3 |
1 |
| Q-255 |
I-255 |
G-255 |
45×12.5×22.5 |
20 |
3 |
2.1 |
| Q-256 |
I-256 |
G-256 |
45×12.5×32.5 |
30 |
3 |
3.15 |
| Q-257 |
I-257 |
G-257 |
45×12.5×42.5 |
40 |
3 |
4.2 |
| Q-258 |
I-258 |
G-258 |
45×12.5×52.5 |
50 |
3 |
5.25 |
| Q-259 |
I-259 |
G-259 |
45×12.5×102.5 |
100 |
3 |
10.5 |
Semi-micro cuvette with frosted walls and lid Q-263 series
The semi-micro frosted cuvette has different dimensions in path width, or even the path width can be customised. This product is able to save your solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-263 |
I-263 |
G-263 |
45×12.5×7.5 |
5 |
4 |
0.7 |
| Q-264 |
I-264 |
G-264 |
45×12.5×12.5 |
10 |
4 |
1.4 |
| Q-265 |
I-265 |
G-265 |
45×12.5×22.5 |
20 |
4 |
2.8 |
| Q-266 |
I-266 |
G-266 |
45×12.5×32.5 |
30 |
4 |
4.2 |
| Q-267 |
I-267 |
G-267 |
45×12.5×42.5 |
40 |
4 |
5.6 |
| Q-268 |
I-268 |
G-268 |
45×12.5×52.5 |
50 |
4 |
7.0 |
| Q-269 |
I-269 |
G-269 |
45×12.5×102.5 |
100 |
4 |
14.0 |
Semi-micro cuvette with frosted walls and lid Q-273 series
The semi-micro frosted cuvette has different dimensions in path width, or even the path width can be customised. This product is able to save your solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-273 |
I-273 |
G-273 |
45×12.5×7.5 |
5 |
5 |
0.85 |
| Q-274 |
I-274 |
G-274 |
45×12.5×12.5 |
10 |
5 |
1.7 |
| Q-275 |
I-275 |
G-275 |
45×12.5×22.5 |
20 |
5 |
3.5 |
| Q-276 |
I-276 |
G-276 |
45×12.5×32.5 |
30 |
5 |
5.2 |
| Q-277 |
I-277 |
G-277 |
45×12.5×42.5 |
40 |
5 |
7.0 |
| Q-278 |
I-278 |
G-278 |
45×12.5×52.5 |
50 |
5 |
8.75 |
| Q-279 |
I-279 |
G-279 |
45×12.5×102.5 |
100 |
5 |
17.5 |
Micro cuvette with frosted walls and stopper Q-283 series
The micro frosted cuvette has different dimensions in path width, or even the path width can be customised. This product is able to save your solvent. Its Teflon stopper can prevent solvent from the leakage and also strength corrosion resistance.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-283 |
I-283 |
G-283 |
45×12.5×7.5 |
5 |
2 |
0.35 |
| Q-284 |
I-284 |
G-284 |
45×12.5×12.5 |
10 |
2 |
0.7 |
| Q-285 |
I-285 |
G-285 |
45×12.5×22.5 |
20 |
2 |
1.4 |
| Q-286 |
I-286 |
G-286 |
45×12.5×32.5 |
30 |
2 |
2.1 |
| Q-287 |
I-287 |
G-287 |
45×12.5×42.5 |
40 |
2 |
2.8 |
| Q-288 |
I-288 |
G-288 |
45×12.5×52.5 |
50 |
2 |
3.5 |
| Q-289 |
I-289 |
G-289 |
45×12.5×102.5 |
100 |
2 |
7.0 |
Semi-micro cuvette with frosted walls and stopper Q-293 series
The semi-micro frosted cuvette has different dimensions in path width, or even the path width can be customised. This product is able to save your solvent. Its Teflon stopper can prevent solvent from the leakage and also strength corrosion resistance.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-293 |
I-293 |
G-293 |
45×12.5×7.5 |
5 |
4 |
0.7 |
| Q-294 |
I-294 |
G-294 |
45×12.5×12.5 |
10 |
4 |
1.4 |
| Q-295 |
I-295 |
G-295 |
45×12.5×22.5 |
20 |
4 |
2.8 |
| Q-296 |
I-296 |
G-296 |
45×12.5×32.5 |
30 |
4 |
4.2 |
| Q-297 |
I-297 |
G-297 |
45×12.5×42.5 |
40 |
4 |
5.6 |
| Q-298 |
I-298 |
G-298 |
45×12.5×52.5 |
50 |
4 |
7.0 |
| Q-299 |
I-299 |
G-299 |
45×12.5×102.5 |
100 |
4 |
14.0 |
Micro cuvette with frosted walls and stopper Q-373 series
The micro frosted cuvette has different dimensions in path width, or even the path width can be customised.
This product is able to save your solvent. Its Teflon stopper can prevent solvent from the leakage and also strength corrosion resistance.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-373 |
I-373 |
G-373 |
45×12.5×7.5 |
5 |
1 |
0.17 |
| Q-374 |
I-374 |
G-374 |
45×12.5×12.5 |
10 |
1 |
0.35 |
| Q-375 |
I-375 |
G-375 |
45×12.5×22.5 |
20 |
1 |
0.7 |
| Q-376 |
I-376 |
G-376 |
45×12.5×32.5 |
30 |
1 |
1 |
| Q-377 |
I-377 |
G-377 |
45×12.5×42.5 |
40 |
1 |
1.4 |
| Q-378 |
I-378 |
G-378 |
45×12.5×52.5 |
50 |
1 |
1.75 |
| Q-379 |
I-379 |
G-379 |
45×12.5×102.5 |
100 |
1 |
3.5 |
Micro cuvette with frosted walls and stopper Q-383 series
The micro frosted cuvette has different dimensions in path width, or even the path width can be customised. This product is able to save your solvent. Its Teflon stopper can prevent solvent from the leakage and also strength corrosion resistance.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-383 |
I-383 |
G-383 |
45×12.5×7.5 |
5 |
3 |
0.5 |
| Q-384 |
I-384 |
G-384 |
45×12.5×12.5 |
10 |
3 |
1 |
| Q-385 |
I-385 |
G-385 |
45×12.5×22.5 |
20 |
3 |
2.1 |
| Q-386 |
I-386 |
G-386 |
45×12.5×32.5 |
30 |
3 |
3.15 |
| Q-387 |
I-387 |
G-387 |
45×12.5×42.5 |
40 |
3 |
4.2 |
| Q-388 |
I-388 |
G-388 |
45×12.5×52.5 |
50 |
3 |
5.25 |
| Q-389 |
I-389 |
G-389 |
45×12.5×102.5 |
100 |
3 |
10.5 |
Semi-micro cuvette with frosted walls and stopper Q-393 series
The semi-micro frosted cuvette has different dimensions in path width, or even the path width can be customised. This product is able to save your solvent. Its Teflon stopper can prevent solvent from the leakage and also strength corrosion resistance.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-393 |
I-393 |
G-393 |
45×12.5×7.5 |
5 |
5 |
0.85 |
| Q-394 |
I-394 |
G-394 |
45×12.5×12.5 |
10 |
5 |
1.7 |
| Q-395 |
I-395 |
G-395 |
45×12.5×22.5 |
20 |
5 |
3.5 |
| Q-396 |
I-396 |
G-396 |
45×12.5×32.5 |
30 |
5 |
5.2 |
| Q-397 |
I-397 |
G-397 |
45×12.5×42.5 |
40 |
5 |
7.0 |
| Q-398 |
I-398 |
G-398 |
45×12.5×52.5 |
50 |
5 |
8.75 |
| Q-399 |
I-399 |
G-399 |
45×12.5×102.5 |
100 |
5 |
17.5 |
Standard cuvette with lid and flat bottom Q-401 series
Standard cuvette with lid is suitable for various spectrophotometers, the matched Teflon lid can prevent solvent from the leakage and also strength corrosion resistance.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-401 |
I-401 |
G-401 |
45×12.5×3.5 |
1 |
10 |
0.35 |
| Q-402 |
I-402 |
G-402 |
45×12.5×4.5 |
2 |
10 |
0.70 |
| Q-403 |
I-403 |
G-403 |
45×12.5×7.5 |
5 |
10 |
1.7 |
| Q-404 |
I-404 |
G-404 |
45×12.5×12.5 |
10 |
10 |
3.5 |
| Q-405 |
I-405 |
G-405 |
45×12.5×22.5 |
20 |
10 |
7.0 |
| Q-406 |
I-406 |
G-406 |
45×12.5×32.5 |
30 |
10 |
10.5 |
| Q-407 |
I-407 |
G-407 |
45×12.5×42.5 |
40 |
10 |
14.0 |
| Q-408 |
I-408 |
G-408 |
45×12.5×52.5 |
50 |
10 |
17.5 |
| Q-409 |
I-409 |
G-409 |
45×12.5×102.5 |
100 |
10 |
35.0 |
Micro fluorescence cuvette Q-504 series
Micro fluorenscence cuvette is able to save the usage of solvent and accurately measure the fluorenscence.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-504 |
I-504 |
G-504 |
45×12.5×12.5 |
10 |
1 |
0.35 |
| Q-514 |
I-514 |
G-514 |
45×12.5×12.5 |
10 |
2 |
0.70 |
| Q-524 |
I-524 |
G-524 |
45×12.5×12.5 |
10 |
3 |
1 |
| Q-534 |
I-534 |
G-534 |
45×12.5×12.5 |
10 |
4 |
1.4 |
| Q-544 |
I-544 |
G-544 |
45×12.5×12.5 |
10 |
5 |
1.7 |
Micro fluorescence cuvette with stopper Q-554 series
Micro fluorenscence cuvette is able to save the usage of solvent and accurately measure the fluorenscence. Its Teflon stopper can prevent solvent from the leakage and also strength corrosion resistance.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-554 |
I-554 |
G-554 |
45×12.5×12.5 |
10 |
1 |
0.35 |
| Q-564 |
I-564 |
G-564 |
45×12.5×12.5 |
10 |
2 |
0.70 |
| Q-574 |
I-574 |
G-574 |
45×12.5×12.5 |
10 |
3 |
1 |
| Q-584 |
I-584 |
G-584 |
45×12.5×12.5 |
10 |
4 |
1.4 |
| Q-594 |
I-594 |
G-594 |
45×12.5×12.5 |
10 |
5 |
1.7 |
Lightproof flow-through cell Q-63 series
The flow-through cell is made of black and clear quartz, there is an inner tube available for testing the solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-634 |
I-634 |
G-634 |
20×12.75×12.75 |
10 |
2 |
0.05 |
| Q-644 |
I-644 |
G-644 |
20×12.75×12.75 |
10 |
4 |
0.1 |
Lightproof flow-through cell Q-73 series
The flow-through cell is made of black and clear quartz, there is an inner tube available for testing the solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-731 |
I-731 |
G-731 |
φ34×25 |
– |
– |
12.0 |
| Q-732 |
I-732 |
G-732 |
φ50×30 |
– |
– |
32.0 |
| Q-733 |
I-733 |
G-733 |
φ60×40.5 |
– |
– |
73.0 |
Lightproof flow-through cell Q-154 series
The flow-through cell is made of black and clear quartz, there is an inner tube available for testing the solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-154 |
I-154 |
G-154 |
45×12.5×12.5 |
10 |
φ1 |
0.01 |
| Q-155 |
I-155 |
G-155 |
45×12.5×22.5 |
20 |
φ1 |
0.016 |
| Q-156 |
I-156 |
G-156 |
45×12.5×32.5 |
30 |
φ1 |
0.025 |
| Q-164 |
I-164 |
G-164 |
45×12.5×12.5 |
10 |
φ1.5 |
0.018 |
| Q-165 |
I-165 |
G-165 |
45×12.5×22.5 |
20 |
φ1.5 |
0.036 |
| Q-166 |
I-166 |
G-166 |
45×12.5×32.5 |
30 |
φ1.5 |
0.055 |
| Q-174 |
I-174 |
G-174 |
45×12.5×12.5 |
10 |
φ2 |
0.03 |
| Q-175 |
I-175 |
G-175 |
45×12.5×22.5 |
20 |
φ2 |
0.06 |
| Q-176 |
I-176 |
G-176 |
45×12.5×32.5 |
30 |
φ2 |
0.09 |
Lightproof flow-through cell Q-604
The flow-through cell is made of black and clear quartz, there is an inner tube available for testing the solvent and also the top metal tube can be connected with the external flow tube.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-604 |
I-604 |
G-604 |
15×12.4×12.4 |
10 |
φ2 |
0.03 |
Lightproof flow-through cell Q-614
The flow-through cell is made of black and clear quartz, there is an inner tube available for testing the solvent and also the top metal tube can be connected with the external flow tube.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-614 |
I-614 |
G-614 |
35×12.4×12.4 |
10 |
φ2 |
0.03 |
Lightproof flow-through cell Q-624-2/Q-624-3
The flow-through cell is made of black and clear quartz, there is an inner tube available for testing the solvent and also assembled with screw connectors on top.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-624-2 |
I-624-2 |
G-624-2 |
35×12.5×12.5 |
10 |
φ2 |
0.03 |
| Q-624-3 |
I-624-3 |
G-624-3 |
35×12.5×12.5 |
10 |
φ3 |
0.07 |
Cylindrical cuvette with stopper Q-87
The cuvette with Teflon stopper is able to prevent solvent leakage.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-87 |
I-87 |
G-87 |
φ22×52.5 |
50 |
φ19 |
14.0 |
| Q-88 |
I-88 |
G-88 |
φ22×102.5 |
100 |
φ19 |
28.0 |
Cylindrical cuvette with single stopper Q-95
The cuvette with Teflon stopper is able to prevent solvent leakage.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-95 |
I-95 |
G-95 |
φ22×12.5 |
10 |
φ19 |
2.8 |
| Q-96 |
I-96 |
G-96 |
φ22×22.5 |
20 |
φ19 |
5.7 |
| Q-97 |
I-97 |
G-97 |
φ22×52.5 |
50 |
φ19 |
14.0 |
| Q-98 |
I-98 |
G-98 |
φ22×102.5 |
100 |
φ19 |
28.0 |
Large cuvette Q-321 series
The cuvette is designed for testing solvent with large volume, it has various dimensions available and can be tailored.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-321 |
I-321 |
G-321 |
40x20x10.4 |
6.35 |
16 |
3.5 |
| Q-322 |
I-322 |
G-322 |
40x20x16.7 |
12.7 |
16 |
7.1 |
| Q-323 |
I-323 |
G-323 |
40x20x29.4 |
25.4 |
16 |
14.2 |
| Q-324 |
I-324 |
G-324 |
40x20x54.8 |
50.8 |
16 |
28.4 |
| Q-325 |
I-325 |
G-325 |
40x20x137.4 |
133.35 |
16 |
74.6 |
| Q-326 |
I-326 |
G-326 |
40x20x14 |
10 |
16 |
5.6 |
| Q-327 |
I-327 |
G-327 |
40x20x104 |
100 |
16 |
56.0 |
Micro cuvette with black walls and lid Q-424 series
The cuvette is made of black and clear quartz, partly prevents solvent from the light and saves the solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-424 |
I-424 |
G-424 |
25×12.5×12.5 |
10 |
1 |
0.15 |
| Q-434 |
I-434 |
G-434 |
25×12.5×12.5 |
10 |
2 |
0.30 |
| Q-444 |
I-444 |
G-444 |
25×12.5×12.5 |
10 |
3 |
0.45 |
| Q-454 |
I-454 |
G-454 |
25×12.5×12.5 |
10 |
4 |
0.60 |
Micro cuvette with frosted walls and lid Q-464 series
The micro frosted cuvette has different dimensions in path width, or even the path width can be customised
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-464 |
I-464 |
G-464 |
25×12.5×12.5 |
10 |
1 |
0.15 |
| Q-474 |
I-474 |
G-474 |
25×12.5×12.5 |
10 |
2 |
0.30 |
| Q-484 |
I-484 |
G-484 |
25×12.5×12.5 |
10 |
3 |
0.45 |
| Q-494 |
I-494 |
G-494 |
25×12.5×12.5 |
10 |
4 |
0.60 |
Micro cuvette with black walls Q-634 series
The cuvette is made of black and clear quartz, partly provents solvent from the light and saves the solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-634 |
I-634 |
G-634 |
20×12.75×12.75 |
10 |
2 |
0.05 |
| Q-644 |
I-644 |
G-644 |
20×12.75×12.75 |
10 |
4 |
0.1 |
Micro cuvette with frosted walls and lid Q-674 series
The micro frosted cuvette has different dimensions in path width, or even the path width can be customised. This product is able to save your solvent.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-674-50 |
I-674-50 |
G-674-50 |
45×12.5×12.5 |
10 |
2 |
0.05 |
| Q-674-100 |
I-674-100 |
G-674-100 |
45×12.5×12.5 |
10 |
2 |
0.1 |
| Q-674-200 |
I-674-200 |
G-674-200 |
45×12.5×12.5 |
10 |
2 |
0.2 |
Automatic biochemical cuvette Q-801 series
The cuvette is specially designed for automatic biochemical analyser, it is durable and excellent in transparency.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-801 |
– |
G-801 |
30×6.5×6.5 |
5 |
5 |
0.3 |
| Q-802 |
– |
G-802 |
32×6.6×6.6 |
5 |
5 |
0.3 |
| Q-803 |
– |
G-803 |
30×6.23×8 |
6 |
5 |
0.3 |
| Q-804 |
– |
G-804 |
27x7x8 |
6 |
5 |
0.3 |
Absorptiometer rectangular cuvette Q-682 series
The cuvette is available in various dimensions.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-682 |
I-682 |
G-682 |
40x28x6.5 |
2.5 |
25 |
2.2 |
| Q-683 |
I-683 |
G-683 |
40x28x9 |
5 |
25 |
4.4 |
| Q-684 |
I-684 |
G-684 |
40x28x14 |
10 |
25 |
8.8 |
| Q-685 |
I-685 |
G-685 |
40x28x24 |
20 |
25 |
17.5 |
| Q-686 |
I-686 |
G-686 |
40x28x44 |
40 |
25 |
35.0 |
| Q-687 |
I-687 |
G-687 |
40x28x54 |
50 |
25 |
43.8 |
| Q-688 |
I-688 |
G-688 |
40x28x104 |
100 |
25 |
87.5 |
| Q-689 |
I-689 |
G-689 |
40x28x204 |
200 |
25 |
175.0 |
Rectagular cuvette with tube Q-704 series
The cuvette is designed for testing gas.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-704 |
I-704 |
G-704 |
45×12.5×12.5
Tube OD: 8mm Overall height: 120mm |
10 |
10 |
3.5 |
Rectagular fluorescence cuvette with tube Q-714
The cuvette is designed for measuring the fluorescence of gas.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-714 |
I-714 |
G-714 |
45×12.5×12.5
Tube OD: 8mm Overall height: 120mm |
10 |
10 |
3.5 |
Cylindrical cuvette with tube Q-721 series
The cuvette is designed for measuring gas.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-721 |
I-721 |
G-721 |
φ22×3.5 |
1 |
φ19 |
0.28 |
| Q-722 |
I-722 |
G-722 |
φ22×4.5 |
2 |
φ19 |
0.56 |
| Q-723 |
I-723 |
G-723 |
φ22×7.5 |
5 |
φ19 |
1.4 |
| Q-724 |
I-724 |
G-724 |
φ22×12.5 |
10 |
φ19 |
2.8 |
| Q-725 |
I-725 |
G-725 |
φ22×22.5 |
20 |
φ19 |
5.6 |
| Q-726 |
I-726 |
G-726 |
φ22×32.5 |
30 |
φ19 |
8.4 |
| Q-727 |
I-727 |
G-727 |
φ22×42.5 |
40 |
φ19 |
11.2 |
| Q-728 |
I-728 |
G-728 |
φ22×52.5 |
50 |
φ19 |
14.0 |
| Q-729 |
I-729 |
G-729 |
φ22×102.5 |
100 |
φ19 |
28.0 |
Cylindrical cuvette without lid Q-731 series
The cuvette is designed for measuring reflection. Different dimensions are available.
| Product number |
|
Dimensions (mm) |
Path Length (mm) |
Path Width (mm) |
Volume (ml) |
| ES quartz glass 190nm-2500nm |
IR quartz glass 250nm-3500nm |
Optical glass 340nm-2500nm |
| Q-731 |
I-731 |
G-731 |
φ34×25 |
– |
– |
12.0 |
| Q-732 |
I-732 |
G-732 |
φ50×30 |
– |
– |
32.0 |
| Q-733 |
I-733 |
G-733 |
φ60×40.5 |
– |
– |
73.0 |
