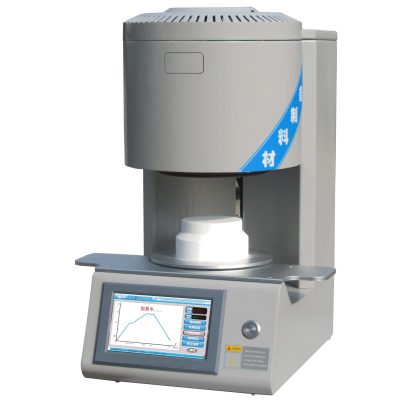

B series high temperature furnaces adopts international advanced manufacturing technology. Furnace cavity is high purity lightweight alumina fiber material. The control interface is large touch screen, easy to operate. Control mathematical model uses advanced PID self-learning fuzzy control, so that control accuracy is maintained at ± 1 ℃. Its standardization production process ensures the quality and consistency of your sintering sample.
Main feature:
* Heating elements surrounded, more constant temperature field;
* Electric lift table design, safe loading;
* Vertical structure is more compact, smaller space;
* Touch screen control system, more simple operation.
Spec:
| Model | Max.Temp | Effective Space (mm) | Volume(L) | Size mm (L*H*W) | Power（AC220V） | Weight Kg(≈） |
| NBD-B1200-10TID | 1200℃ | Φ90X70 | 1.35 | 410*480*410 | 1.4 KW | 30 |
