Description

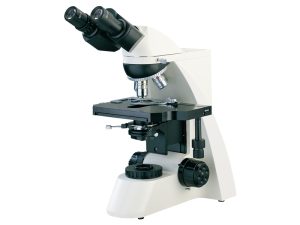

- L3000series biological microscope is equipped with plan achromatic objectives and wide field eyepieces. It provides clear image, wide field, convenience operation. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.
Features▲ With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm▲ Using Kohler illumination with 6V 20W halogen lamp with brightness control
Specification
-
Standard ConfigurationModelL3000AL3000BEyepieceWF10X(Φ20mm)ObjectivePlan achromatic PL 4X/0.10Plan achromatic PL 4X/0.10Plan achromatic PL 10X/0.25Plan achromatic PL 10X/0.25Plan achromatic PL 20X/0.40Plan achromatic PL 40X/0.65(Spring)Plan achromatic PL 40X/0.65(Spring)Plan achromatic PL 100X/1.25(Spring, oil)Plan achromatic PL 100X/1.25(Spring, oil)Eyepiece tubeBinocular(Inclination of 30˚)Focus systemCoaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.NosepieceQuadruple(Backward ball bearing inner locating)Quintuple(Backward ball bearing inner locating)StageDouble layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)Abbe condenserN.A.1.25 Rack & pinion adjustableFilterBlue filterFrosted filterCollectorFor halogen lampLight source6V 20W Halogen lamp with brightness control
