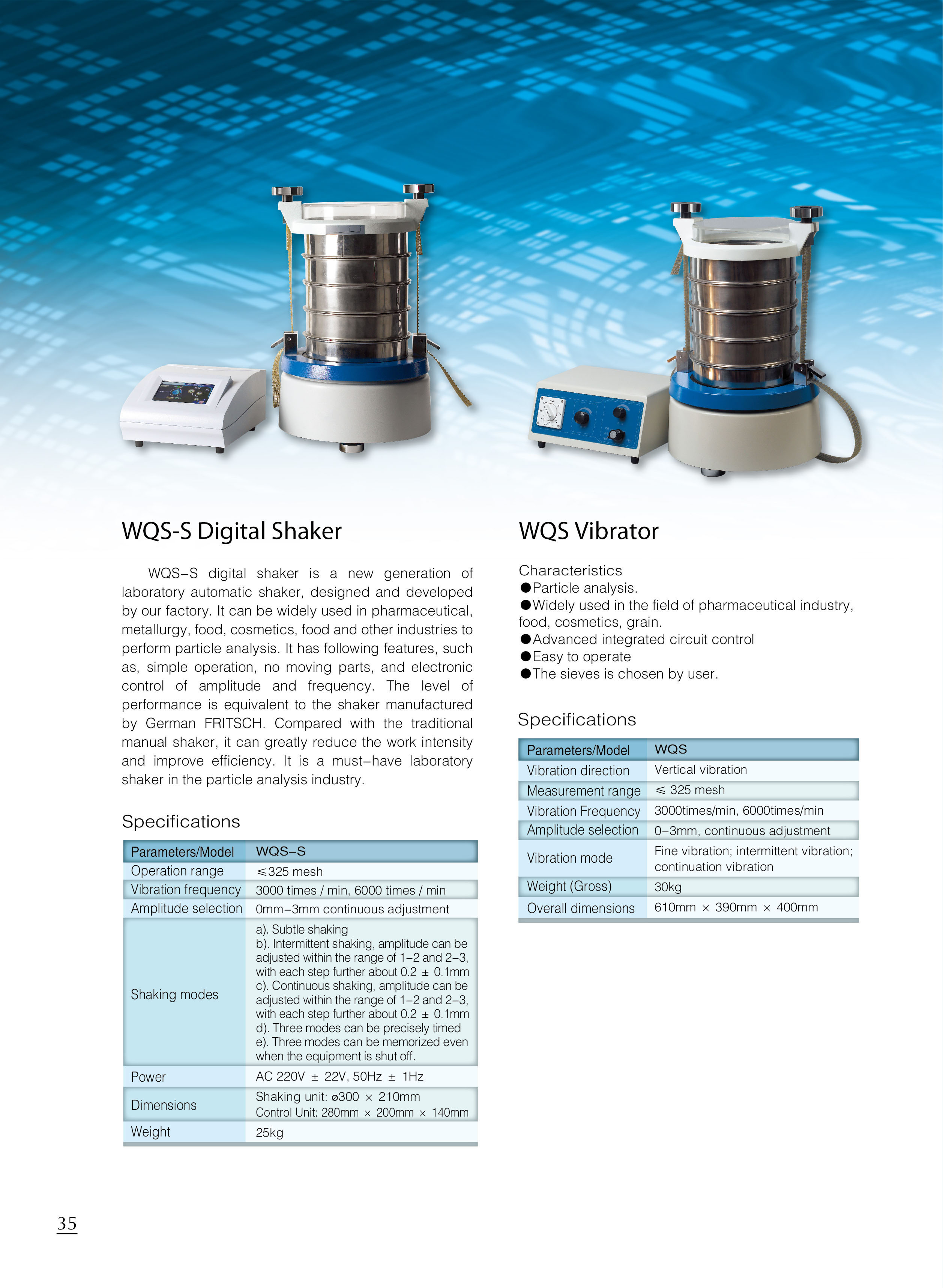

WQS-S Digital Shaker is a new generation of laboratory automatic shaker, designed and developed by our factory. It can be widely used in pharmaceutical, metallurgy, food, cosmetics and other industries to perform particle analysis. It has following features, such as, simple operation, no moving parts, and electronic control of amplitude and frequency. The level of performance is equivalent to the shaker manufactured by German FRITSCH. Compared with the traditional manual shaker, it can greatly reduce the work intensity and improve efficiency. It is a must-have laboratory shaker in the particle analysis industry.
Specification
| Parameters/Model | WQS-S |
| Operation range | ≤325mesh |
| Vibration frequency | 3000 times/min, 6000 times/ min |
| Amplitude selection | 0 – 3mm continuous adjustment |
| Shaking modes | 1. Subtle shaking |
| 2. Intermittent shaking, amplitude can be adjusted within the range of 1 -2 and 2 -3, with each step further about 0.2±0.1mm | |
| 3. Continuous shaking, amplitude can be adjusted within the range of 1 -2 and 2 -3, with each step further about 0.2±0.1mm | |
| 4. Three modes can be precisely timed | |
| 5. Three modes can be memorized even when the equipment is shut off | |
| Power | AC 220V±22V， 50Hz±1Hz |
| Dimensions | Shaking unit: Φ300×210mm |
| Control unit: 280mm×200mm×140mm | |
| Weight | 25kg |
