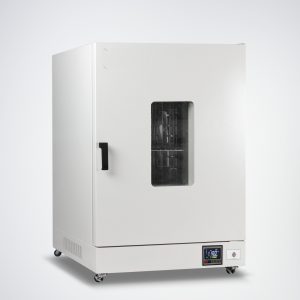

LDO-101-0 Series Forced Air Drying Oven
Features
★ Horizontal and vertical type are available.
★ Forced air,good temperature uniformity.
★ Microprocessor controller(with temperature correction and timing function), accurate and reliable.
★ Large LCD screen display.

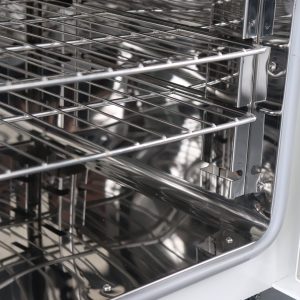

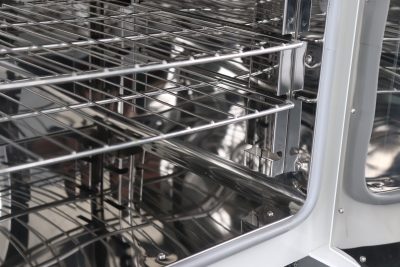

★ High quality stainless steel chamber, removable shelf, easy-to-clean.
★ Equipped with multiple sets of heaters.(For LDO-101 Series)
★ Adopt temperature selection switch which can select the grade according to the heating speed and operating temperature.(For LDO-101 Series).

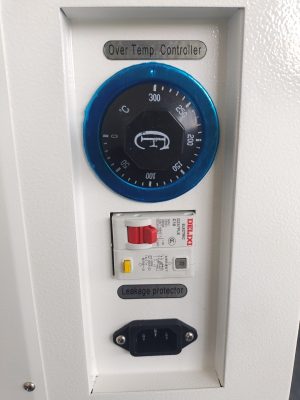

★ Equipped with leakage protection.

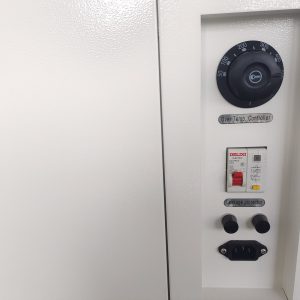

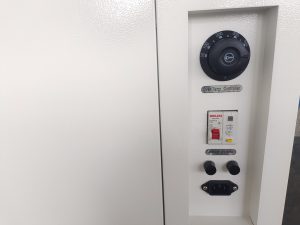

★ Equipped with spare temperature control which ensures the product work normally even the main temp.control failed
★ Anti-hot handle
Technical Parameters:
1.Temp. Fluctuation:±1℃.
2.Temp. Uniformity:±2.5℃%.
3.Temp.Resolution：0.1℃
4.Timer：1~9999m
Options:
1. Multi-segment programmable control
2. Built-in Printer
3. RS485 interface
Spec:
| Model | Volume(L) | Chamber Size (W×D×H) cm | Exterior Size（W×D×H) cm | Power Rating（W） | Temp.Range（℃） | Shelf | Power Supply | Shape |
| LDO-101-0 | 43 | 35×35×35 | 64×50×60 | 1300 | RT+5～300 | 2/4 | A220V 50HZ | Horizontal |
| LDO-101-1 | 81 | 45×40×45 | 73×53×69 | 2000 | 2/6 | |||

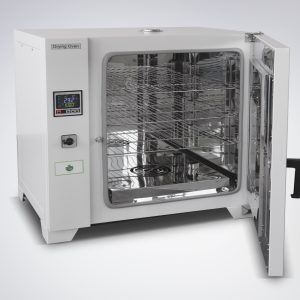

| LDO-101-2 | 138 | 50×50×55 | 78×69×80 | 2500 | 3/7 | |||
| LDO-101-3 | 252 | 60×60×70 | 88×73×95 | 3500 | 3/10 | |||
| LDO-101-4 | 640 | 80×80×100 | 108×93×125 | 5500 | 4/15 | AC 380V 50HZ | ||
| LDO-101-5 | 960 | 100×80×120 | 128×98×145 | 7000 | 5/18 | |||

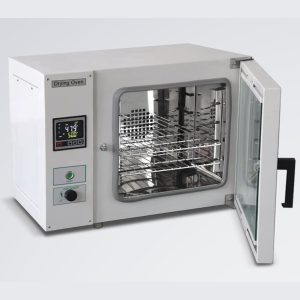

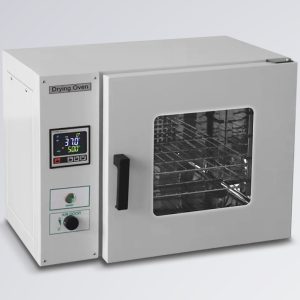

| LDO-9023A | 25 | 30×30×28 | 58×50×45 | 320 | RT+5～200 | 2/4 | AC 220V 50HZ | Horizontal |
| LDO-9053A | 54 | 42×37×35 | 71×56×42 | 600 | 2/5 | |||
| LDO-9123A | 138 | 50×50×55 | 83×61×72 | 1200 | 3/7 | |||
| LDO-9203A | 252 | 60×60×70 | 88×78×82 | 1600 | 3/10 | |||
| LDO-9030A | 31.5 | 30×30×35 | 45×47×70 | 700 | RT+5～200 | 2/5 | AC 220V 50HZ | Vertical |
| LDO-9070A | 72 | 40×40×45 | 55×60×80 | 1000 | 2/7 | |||
| LDO-9140A | 136 | 45×55×55 | 64×73×90 | 1600 | 3/8 | |||
| LDO-9240A | 225 | 50×60×75 | 88×72×93 | 2000 | 3/11 | |||
| LDO-9420A | 429 | 60×55×130 | 78×71×170 | 2600 | 4/6 | AC 380V 50HZ | ||
| LDO-9620A | 624 | 80×60×130 | 98×80×178 | 3600 | 5/6 | |||
| LDO-9036A | 31.5 | 30×30×35 | 45×47×70 | 950 | RT+5～300 | 2/5 | AC 220V 50HZ | |
| LDO-9076A | 72 | 40×40×45 | 55×60×80 | 1400 | 2/7 | |||
| LDO-9146A | 136 | 45×55×55 | 64×73×90 | 2000 | 3/8 | |||
| LDO-9246A | 225 | 50×60×75 | 69×77×114 | 2600 | 3/11 | |||
| LDO-9426A | 429 | 60×55×130 | 78×71×170 | 3500 | 4/6 | AC380V
50HZ |
||
| LDO-9626A | 624 | 80×60×130 | 103×80×178 | 5700 | 5/6 |
