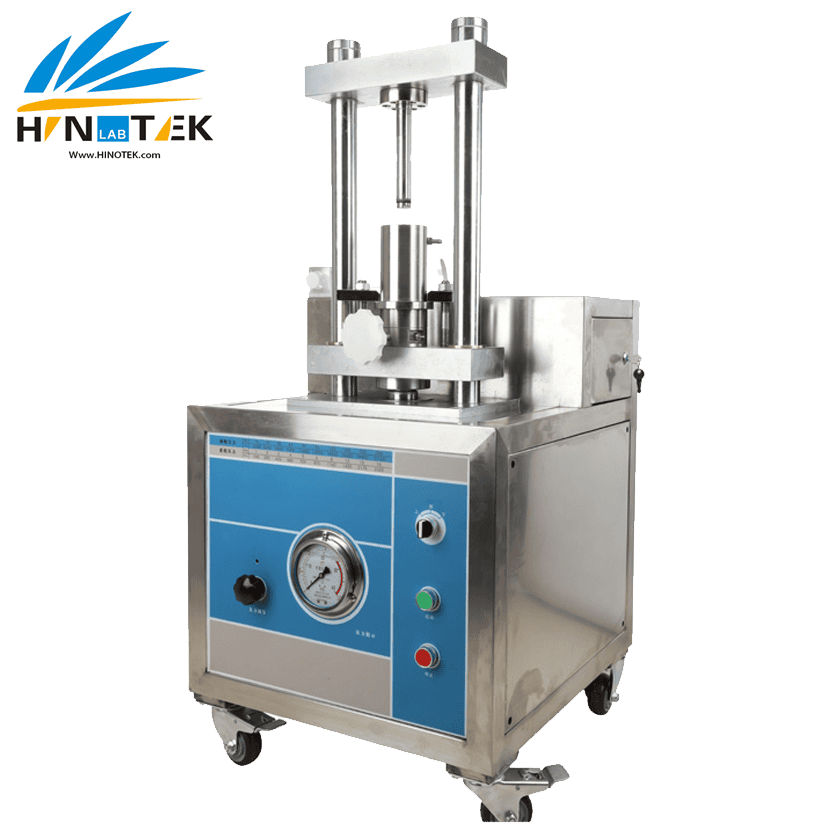

The highest pressure of JG-IA is 256Mpa (37120PSi), which can satisfy many cell wall breaking and Nano homogenization / dispersion of sample, and realize effective temperature control at the same time.
- Continuously adjustable pressure,0-37,120 psi
- Simple operation, continuous circulation of sample, no exhaust, directly feed
- Physical methods crushing to avoid external pollution
- Convenient maintenance
- The safety factor is high, and the circuit has overload automatic protection function
- Many kinds of cell walls and samples are satisfied, and no specific for samples
TECHNICAL PARAMETERS
| Model | JG-IA | Capacity | Max 50ml/time, Continuous increase samples |
| Power Supply | 380V | Max pressure | 256Mpa(37120PSi) |
| Pressure device | Hydraulic System | Max pressure stroke | 170mm |
| Sample tube | Stainless steel | Pressure plate speed | 6.8mm/s |
| Pressure tank size | Φ25*150mm | Dimensions | 555*600*1170mm |
