GM Series Diaphragm Vacuum Pump

Products Instroduction

“JT” Series Diaphragm Vacuum Pump has the features of continuous oil free pumping , low noise level , higher efficiency , long lifetime . It is mainly used in medicinal products analysis , industry of fine chemicals , biochemical pharmacy , food examination , The criminal investigation technology , etc . It is used with the precision chromatography instrument , the necessary of laboratory . This product is specially designed for laboratory , reliable and easy to use . These series of products have obtained the national patent .

Application:

Vacuum adsorption
Solvent filtration
Vacuum distillation
Vacuum drying
Compressing and converting gas
SPE (solid phase extraction)Deaeration

Features:

1.The product could work without any medium and does not produce pollution .The gas exchange room is placed with filtering material , to ensure that the air is clean .
2.New material and new technology are adopted in production . It is convenient to move , and work smoothly , thus ensuring the ideal vacuum degree and higher air velocity .
3.Using frictionless membrane body movement , does not produce heat , no friction consumption . Imported rubber diaphragm has corrosion resistance and long service life .
4.Automatic cooling exhaust system is designed in the body , ensures continuous operation 24 hours a day .
5.The pressure adjustable design can satisfy a certain range of vacuum and gas velocity .
6.Bearing imported classic bearing , smooth operation , low noise , high efficiency .
7.The parts in contact with the gas of anticorrosive pump is with TEFLON surface treatment , which have complete ability of resistance to chemical corrosion .
8.Special motor is ODM provided by the export of professional motor manufacturer and has got the European CE certification . It has the reasonable rotation design , equipped with a power overheat protector , when the pump body temperature reached 130 degrees , it will automatically power off , to protect the motor from being damaged in the long running work .
9.Small volume and light weight , easy to move , save space , convenient repair and maintenance .

Diaphragm Vacuum Pump –Anticorrosive

New anticorrosive pumps through Teflon treatment have been launched in market . Teflon treatment is accessible to all types of Jinteng pumps .
Anticorrosive pump is through Teflon treatment , the parts which contact with the gas are PTFE material , it’s suitable for the corrosive chemical , pharmaceutical , petrochemical gases etc . It’s used for vacuum filtration , reduced pressure distillation , rotary evaporation , vacuum concentration , centrifugal concentration , solid phase extraction etc . It’s a very high cost performance product with quality reliability , unique structural design to meet the various needs of the laboratory . The specifications are same as the normal pump .

New PTFE Anticorrosive Pump Will Come Into the Market

FEATURES :

1.Corrosion resistance , able to tolerance almost all strong acid (including aqua regia), strong alkali , strong oxidizer , reductant , and variety of organic solvents .
2.Withstand high and low temperatures , can be used in temperature of -190℃ to 260℃ .
3.Non-stick surface , most solid material and impurity particles can not conglutinate on the surface .

Technological competitiveness

The internal components of Jinteng diaphragm vacuum pump series are produced by numerical control equipments which imported from Germany DMG and Korea kia . This is our unique technology competitiveness that all the same type of products made by other companies could not match . With the good appearance , stable quality , excellent performance of our products , and high quality service of our company , we believe that Jinteng’s diaphragm vacuum pump is the best choice for your laboratory .

GM-0.20
Speed of evacuation (L/Min ): 12
Ultimate pressure vacuum : ≥0.075 Mpa 250 mbar
Voltage rating :220Vac, 50Hz
Motor power (w): 75W
Pressure : ≥30Psi
Inlet (mm): Ø 6
Outlet (mm): Ø 6
Temperature of working environment (℃ ): 7-40
Function : Vacuum & Pressure
Pump head : Nylon
Temp of the body (℃ ): <55
Dimensions (LXBXH )(mm): 195 x 98 x 156
Noise level (DB ): <60
Weight (kg ): 4

GM-0.33II
Speed of evacuation (L/Min ): 20
Ultimate pressure vacuum : ≥0.08 Mpa 200 mbar
Voltage rating :220Vac, 50Hz
Motor power (w): 160W
Inlet (mm): Ø 6
Outlet (mm):Inner Silencer
Temperature of working environment (℃ ): 7-40
Function : Vacuum
Pump head : 1
Temp of the body (℃ ): <55
Dimensions (LXBXH )(mm): 215 x 120 x 235
Noise level (DB ): <60
Weight (kg ): 7.5
Diaphragm : NBR
Valves : NBR

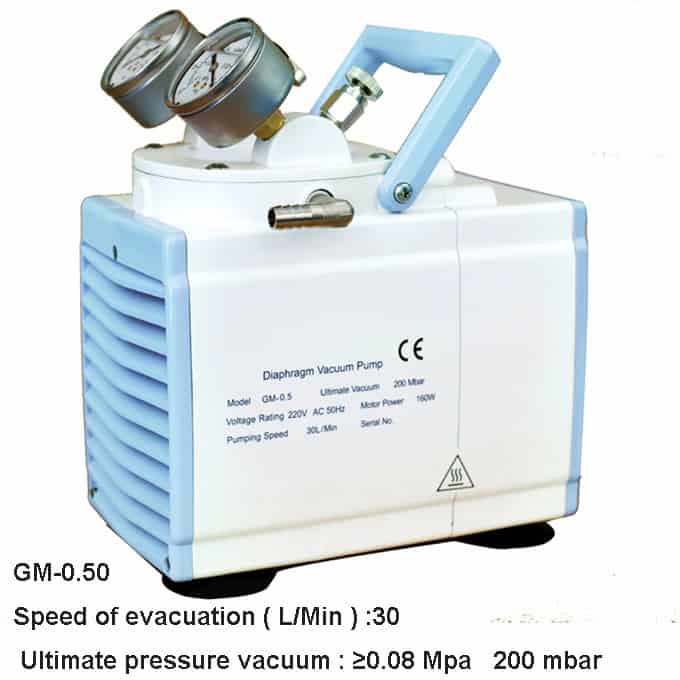

GM-0.50
Speed of evacuation (L/Min ):30
Ultimate pressure vacuum : ≥0.08 Mpa 200 mbar
Voltage rating :220Vac, 50Hz
Motor power (w):160W
Pressure : ≥30Psi
Inlet (mm): Ø 6
Outlet (mm): Ø 6
Temperature of working environment (℃ ): 7-40
Function : Vacuum & Pressure
Pump head : 1
Temp of the body (℃ ): <55
Dimensions (LXBXH )(mm): 210 x 160 x 235
Noise level (DB ): <60
Weight (kg ): 8
Diaphragm : NBR
Valves : NBR

GM-0.5II
Speed of evacuation (L/Min ):30
Ultimate pressure vacuum : ≥0.095 Mpa 50 mbar
Voltage rating :220Vac, 50Hz
Motor power (w): 160W
Inlet (mm): Ø 6
Outlet (mm): Silencer
Temperature of working environment (℃ ): 7-40
Function : Vacuum
Pump head : 2
Temp of the body (℃ ): <55
Dimensions (LXBXH )(mm): 300 x 120 x 235
Noise level (DB ): <60
Weight (kg ): 10
Diaphragm : NBR
Valves : NBR

GM-1.00
Speed of evacuation (L/Min ):60
Ultimate pressure vacuum : ≥0.08 Mpa 200 mbar
Voltage rating :220Vac, 50Hz
Motor power (w): 160W
Pressure : ≥30Psi
Inlet (mm): Ø 6
Outlet (mm): Ø 6
Temperature of working environment (℃ ): 7-40
Function : Vacuum & Pressure
Pump head : 2
Temp of the body (℃ ): <55
Dimensions (LXBXH )(mm): 300 x 160 x 235
Noise level (DB ): <60
Weight (kg ): 10
Diaphragm : NBR
Valves : NBR

GM-0.33II-AT
Speed of evacuation (L/Min ): 20
Ultimate pressure vacuum : ≥0.08 Mpa 200 mbar
Voltage rating :220Vac, 50Hz
Motor power (w): 160W
Inlet (mm): Ø 6
Outlet (mm):Inner Silencer
Temperature of working environment (℃ ): 7-40
Function : Vacuum
Pump head : 1
Temp of the body (℃ ): <55
Dimensions (LXBXH )(mm): 215 x 120 x 235
Noise level (DB ): <60
Weight (kg ): 7.5
Diaphragm : NBR
Valves : NBR

GM-0.50-AT
Speed of evacuation (L/Min ):30
Ultimate pressure vacuum : ≥0.08 Mpa 200 mbar
Voltage rating :220Vac, 50Hz
Motor power (w):160W
Pressure : ≥30Psi
Inlet (mm): Ø 6
Outlet (mm): Ø 6
Temperature of working environment (℃ ): 7-40
Function : Vacuum & Pressure
Pump head : 1
Temp of the body (℃ ): <55
Dimensions (LXBXH )(mm): 210 x 160 x 235
Noise level (DB ): <60
Weight (kg ): 8
Diaphragm : NBR
Valves : NBR

GM-0.5II-AT
Speed of evacuation (L/Min ):30
Ultimate pressure vacuum : ≥0.095 Mpa 50 mbar
Voltage rating :220Vac, 50Hz
Motor power (w): 160W
Inlet (mm): Ø 6
Outlet (mm): Silencer
Temperature of working environment (℃ ): 7-40
Function : Vacuum
Pump head : 2
Temp of the body (℃ ): <55
Dimensions (LXBXH )(mm): 300 x 120 x 235
Noise level (DB ): <60
Weight (kg ): 10
Diaphragm : NBR
Valves : NBR

GM-1.00-AT
Speed of evacuation (L/Min ):60
Ultimate pressure vacuum : ≥0.08 Mpa 200 mbar
Voltage rating :220Vac, 50Hz
Motor power (w): 160W
Pressure : ≥30Psi
Inlet (mm): Ø 6
Outlet (mm): Ø 6
Temperature of working environment (℃ ): 7-40
Function : Vacuum & Pressure
Pump head : 2
Temp of the body (℃ ): <55
Dimensions (LXBXH )(mm): 300 x 160 x 235
Noise level (DB ): <60
Weight (kg ): 10
Diaphragm : NBR
Valves : NBR
