Water Bath,Oil &Dry Bath arrow Dry Bath (Incubator) arrow MK-10/MK-20

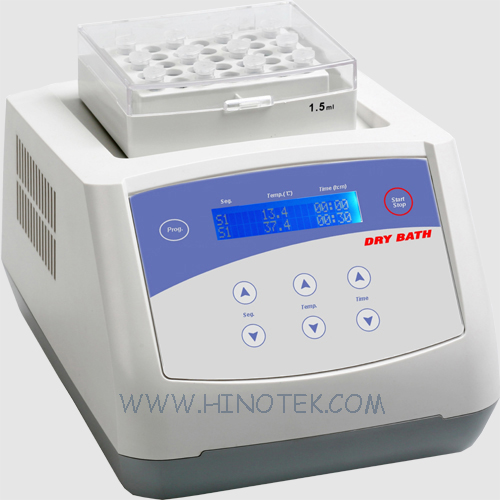

MK-10/MK-20 Dry Bath

MK-10
MK-20
MK-10
MK-20
Feature:
* Precise microprocessor control
* Programmable temperture and timer
* Easy user calibration
* Wide temperature setting range
* Sample block disigned for easy removal, cleaning or replacement
* Peltier design of MK-20 provides efficient thermal control in a compact unit

Specification:
Model
MK-10
NK-20
Temp.Control Reange
RT+5~100 Deg.C
-10 ~ 100 Deg.C
Timing Range
1min ~99h59min
1min ~99h59min
Temp.Control Accuracy
<±0.3 deg.C
<±0.3 deg.C
Display Accuracy
0.1 Deg.C
0.1 Deg.C
Heating Time
<12 Min (20 deg.C to 100 Deg.C)
<20 Min (20 deg.C to 100 Deg.C)
Cooling Time (*)
---
<30 Min (20 deg.C to -10 Deg.C)
Heating Parts
Heater
TE Module
Cooling Parts
---
TE Module
Dimension (L*W*H) mm
300*220*170
300*220*170
Net Weight
2.5Kg
5.0Kg
Power
AC220V/110V
AC220V/110V
* Cooling rate <25 min (20 Deg.C to -5 deg.C) if the room temperture is lower than 30 deg.C
* Cooling rate <30 min (20 Deg.C to -10 deg.C) if the room temperture is lower than 25 deg.C

Blocks for MK-10/MK-20 Dry bath (Option)
Type Parameter
Max.Temp
Min.Temp. (MK-20)
A 96*0.2ml
100 Deg.C
-10 Deg.C
B 54*0.5ml
100 Deg.C
-10 Deg.C
C 35*1.5ml
100 Deg.C
-10 Deg.C
D 35*2.0ml
100 Deg.C
-10 Deg.C
E 15*0.5ml+20*1.5ml
100 Deg.C
-10 Deg.C
F 24*Dia.<12mm Tube
100 Deg.C
0 Deg.C
G 12*15ml Falcon
100 Deg.C
0 Deg.C
H 6*50ml Falcon
100 Deg.C
0 Deg.C
I 103*67*30 Water Bath Block
100 Deg.C
0 Deg.C
J 96 Well Microplate
100 Deg.C
0 Deg.C

:
