Microscope

Microscope Accessories

microscope Accessory

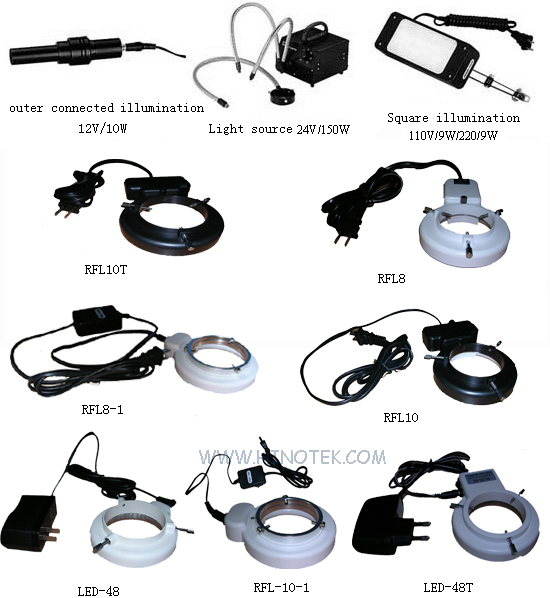

Light Source

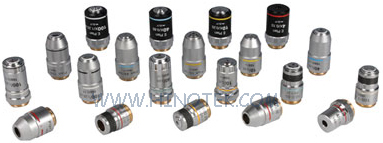

Objective

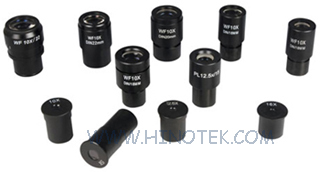

Eyepiece

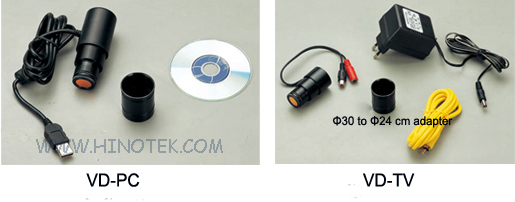

VD-PC Digital Camera Eyepiece
Features：
* It Looks Like an Eyepiece. It Can be
Easily Inserted into Eyepiece Tube of
Microscope. The Digital Micro-image is
Immediately Picked up by Computer. It is Used
in the Field of Image Demonstration and
Analysis/Application.
* USB Is Used to Adapt with PC. It is Freely
Plugged and Unplugged.
* High Resolution CMOS Chip. 640×480 Pixel
Supplies a Nice Image on PC Monitor.

VD-TV Video Camera Eyepiece
Features：
* It Looks Like an Eyepiece. It Can be Easily
Inserted into Eyepiece Tube of Microscope. The
Video Micro-Image Displays Immediately on TV
Set. It is Suitable for Image Demonstration.
* High Resolution CMOS Chip.
640*480 Pixel Supplies a Nice Image on TV Set.

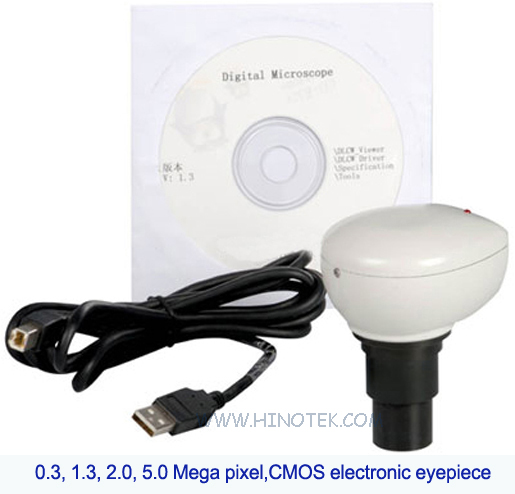

CMOS Electric Eyepiece

MODEL PIXELS

HK-0.3 0.3 Mega Pixels

HK-1.3 1.3 Mega Pixels

HK-2.0 2.0 Mega Pixels

HK-3.0 3.0 Mega Pixels

HK-5.0 5.0 Mega Pixels

HK-9.0 9.0 Mega Pixels

DV camera

DV-1B Camera	1/3" CCD
	USB 2.0 output, Max resolution: 720576(PAL) 720480(NTSC). White balance: Automatic.
	System requirement: Windows 2000/ Windows XP
	VIDEO output, Horizontal resolution: 520 TV lines, 1Vp-p/75Ω NTSC/PAL (optional)
	Accessories: Video cable, Power adapter, USB cable, Driver CD, User guide.
	CCD adapter:1X
DV-2B Camera	1/2" CMOS
	USB 2.0 output, Resolution: 1.3 Mega pixels. Max resolution:1280*1024(Dynamic in real time)
	White balance: Automatic/Manual.
	System requirement: Windows 2000/ Windows XP/Windows Vista
	Accessories: USB cable, Driver CD, User guide.
	CCD adapter:1X
DV-2C Camera	1/2" CMOS
	USB 2.0 output, Resolution: 2.0 Mega pixels. Max resolution:1600*1200 (Dynamic in real time)
	White balance: Automatic.
	System requirement: Windows 2000/ Windows XP
	Accessories: USB cable, Driver CD, User guide.
	CCD adapter:1X
DV-3A Camera	1/3" CCD
	Horizontal resolution:380 TV lines, 1Vp-p/75Ω NTSC/PAL (optional)
	Accessories: Video cable, Power adapter, User guide.
	CCD adapter:1X
DV-3B Camera	1/3" CCD
	Horizontal resolution:520 TV lines, 1Vp-p/75Ω NTSC/PAL (optional)
	Accessories: Video cable, Power adapter, User guide.
	CCD adapter:1X
CCD adapter	0.4X
	0.5X
	0.5X with dividing 0.1mm/Div
