Mixer, Stirrer & Shaker arrow Shaker & Incabator arrow MS-100/MSC-100 Thermo Shaker

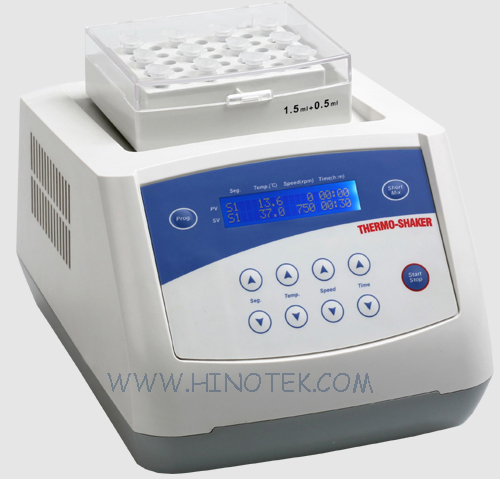

MS-100/MSC-100 Thermo Shaker


It is designed for simultaneous heating, cooling and mixing of small samples. Both MS-100 & MSC-100 are supplied with interchangeable platforms for various tubes mixing, heating and cooling modes can be used either simultaneously or independently. The main body housing the mixing and heating platform can accommodate different kinds of blocks.

Features:
1. LCD display. It is easy to setup and use
2. Accurately control and display time, temperature and speed
3. Over heating protection device ensures safety & reliability
4. Low noise working even under the speed of 1,500rpm
5. Customized blocks are available to suit your specific demands
6. Audible signal to indicate end of run after program completion
7. Gental, reliable mixing with long-life direct current motor
8. Conforms to CE safty standard
9. Peltier design of MSC-100 provides thermal control in a compact unit

Spec:
Model
MS-100
MSC-100
Temp.Setting Range
RT +5 ~ 100°C
0 ~ 100°C
Temp.Control Range
RT+5~100 °C
0 ~100°C Ambient Temp.<20°C
4~ 100 °C  Ambient Temp.<25 °C
10~ 100 °C Ambient Temp.<30 °C
Timing Range
1min ~99h59min
Mixing Range
200 RPM ~ 1500 RPM
Mixing Orbit
2 mm
Temp.Control Accuracy
±0.5°C
Display Accuracy
0.1°C
Heating Time (20 to 100 Deg.C)
<15 Min
Cooling Time ------
<30 min (From RT. To RT-20 °C)
<15 min (From 100 To 20°C)

Blocks for MS-100/MSC-100 (Option)
Type
Discription
Max. Seed (RPM)
A
96*0.2ml
1500
B
54*0.5ml
C
35*1.5ml
D
35*2.0ml
E
15*0.5ml+20*1.5ml
F
24*Dia.<12mm Tube
1200
G
12*15ml Falcon
750
H
6*50ml Falcon
I
103*67*30mm Bath Block
1500
J
96*0.2ml microplate
K
24*5ml Tubes
1200
L
96-Deep well plate
800
:
