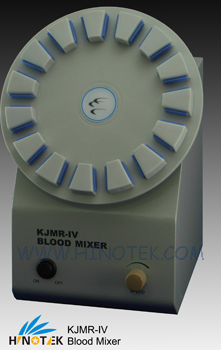

KJMR-IV Blood Mixer | | |  |  | | Description: | The KJMR-IV Blood Mixer is specially designed for vacuum blood tube mixing. It is an ideal instrument of
blood corpuscle analyzer and blood flow analyzer for full sample mixing in laboratories with high mixing efficiency and consistency.
The instrument is made of silicone rubber which can well protect the surfaces of the vessels.
The disc is rolling inclinely while the speed is adjustable. |
| |
| Specification: |
Rolling Speed: 12-32 rpm
Tube Qty per : 1-15 pc
Tube diameter: Dia.13 +/-0.1mm
Working Disc Diameter: Dia.220mm
Angle of Inclination: 38 Degree
Voltage: AC220V (50/60Hz)
Power Consumption: 6w
Working System: continue |
| |
| Usage:First put the disc on the motor, screw aim at main shaft then fixed.It must use bottle or tube of diameter Dia.13 +/- 0.1mm, fill tidely with screw cap.The operator underprop the back of disc by left hand , hold down by right hand when assenble the vacumm blood tubes. |
| |
| Precautions: |
| When unpacked, please install the disc to axis of the instrument.Press the rear side of the working disc with your middle finger when fixing the vessels. Please correctly connected to the ground for alternating power supply. |
| | Packing Quantity:2 sets/package
Packing Measurement:49*36*42 |
|
: |
|
|
