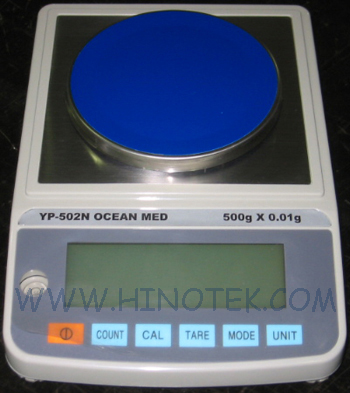

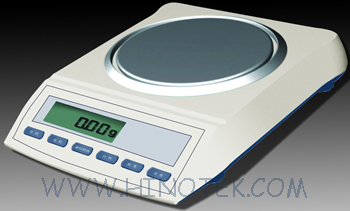

YP-N Electronic Balance (AC/DC) |  |  | YP202N | YP502N | | | | YP-N Electronic Balance is new advanced product consisting of a strain gauge transducer and a microcomputer. It adopts SMT surface technology and LCD display, with a high stability and multi-functions. It has an over-load and low voltage alarm system. |
| Function: | | High sensitivity | | Automatic calibration with automatic calibration program | | Full rang tare | | Units selection | | Quick response | | Automatic Zero track | | Standard RS232 output interface | | AC/DC(YP102N, 202N, 402N, 1201N, 2001N) |
| | | | Speification: | | Model | YP102N | YP202N | YP402N | YP601N | YP1201N | YP502N | YP802N | YP1002N | | Capacity(g) | 100 | 200 | 400 | 600 | 1200 | 500 | 800 | 1000 | | Readability | 10mg | 100mg | 10mg | | Pan size | Φ110mm | Φ130mm | 130mm*130mm | | Outer dimensions | 245mm*185mm*66mm | 320mm*218mm*138mm | | Net Weight | 0.9Kg | 1.6Kg | | Power supply | 220VAC or 110VAC /DC9V | 220VAC or 110VAC |
| | | Model | YP2001N | YP3001N | YP6001N | YP10KN | YP15KN | YP20KN | | Capacity(g) | 2000 | 3000 | 6000 | 10000 | 15000 | 20000 | | Readability | 100mg | 1g | | Pan size | 160mm*170mm | 280mm*250mm | | Outer dimensions(mm) | 320mm*218mm*138mm | 432mm*270mm*110mm | | Net Weight | 1.9Kg | 5.8Kg | | Power supply | 220VAC or 110VAC /DC9V | 220VAC or 110VAC |
| | | | |
|
: |
|
|
