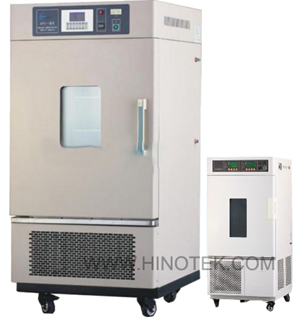

LHS Constant Temperature & Humid Incubator
|
---Microprocessor Controller |
| |
LHS-80HC-I(II) | LHS-150SC |
LHS-150HC-I(II) | LHS-250SC |
LHS-250HC-I(II) | |
| |
| Summary: |
| This Model use Freon-Free Compressor to protect environment, it is equipped with a precise system of temperature and humidity control, which provide various necessary environmental simulative conditions for industrial researches and biotechnology tests. Widely applied in sterile tests and stability check-up of pharmaceuticals, textile and food processing as well as tests in material performance, packing and lifetime of industrial products. |
| |
| Features: |
| 1. Specula stainless steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable. |
| 2. Microprocessor controller for temperature and humidity ensures precise and reliable control. Controller and compressor use international famously brand. |
| 3.Independent alarm system for temperature-limiting, can auto shutdown the machine when over temperature- ensures experiments run safely and no accident would happen.(Option) |
| 4. RS485 interface are options, which connect to computer to record variation curves of temperature. (Option) |
| 5. A test hole (25mm) in the left of machine, easy to operation & measure temperature (Except LHS-150SC). |
| |
Option accessories: |
| 1. Intelligent LCD display programable temperature controller. |
| 2. Control Board and Printer. |
| 3. Independent temperature-limiting controller. |
| 4. Test hole on the Door(Except SC). |
| |
| Specifications： |
Model | Professional
Constant Temperature & Humid Incubator | Economic
Constant Temperature &
Humid Incubator | LHS-80HC-I
LHS-80HC-II | LHS-150HC-I
LHS-150HC-II | LHS-250HC-I
LHS-250HC-II | LHS-150SC | LHS-250SC | Temperature Range | I:-5 ~ 60 oC II::-10 ~ 80 oC | 15 ~ 45 oC(With humidity)
10 ~ 45 oC(Without humidity) | Temperature Control | 0.1 oC | Temperature Stability | +/- 0.5oC(At high temperature)
+/- 1oC(At low temperature) | +/- 1 oC(At high temperature)
+/- 2 oC(At low temperature) | Humidity Range | I: 40 ~ 85%
II: 40 ~ 95% | 60 ~ 85%RH | 60 ~ 85%RH | Humidity Stability | +/- 3% RH | +/- 5% ~ 8%RH | Electrical Requirements | 220V 50Hz | | | | | Ambient Temperature | +5~30oC | | | | | Input Power | | 1760W | 25000W | 680W | 850W | Interior Dimension
(mm)W*D*H | 400*400*500 | 550*400*680 | 600*500*830 | 500*370*800 | 600*500*830 | Overall Dimension
(mm)W*D*H | 550*790*1080 | 700*800*1430 | 750*900*1580 | 600*575*1325 | 750*900*1580 | Shelves per chamber
(Normal) | 2(pcs) | 3(pcs) | Remark | I: Printer is optional
II: Printer is equipped | RS485 interface & building-in printer is optional |
|
| |
| Temperature & Humidity Control Area |
| |
| |
| |
