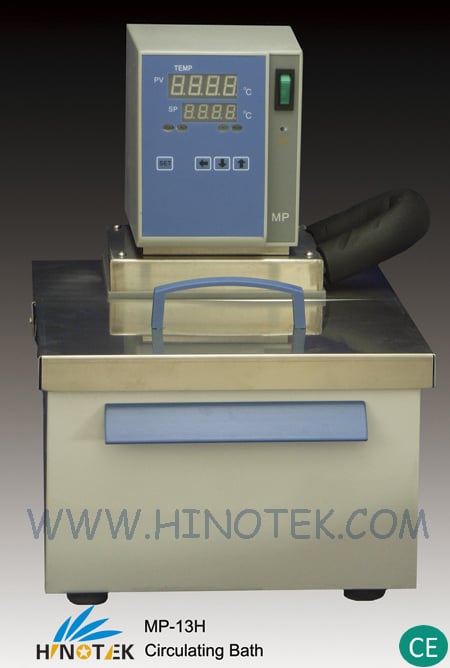

Constant Temperature Circulating Bath

Circulating Bath (Constant Temperature)

---------Microprocessor Control

Summary:

The latest constant temperature bath system integrates many-year experience of our company, With the technology introduced and absorbed from Germany, it is top-quality,

safe and reliable. It is widely applicable for the fields such as petroleum, chemical
industry, medicine, life sciences, measurement, light industry and scientific research.

Features:

1) A powerful pressure suction pump provides a constant temperature supply for external tank

2) It is equipped with a interface to the external water bath

3) Intelligent microprocessor temperature controller makes temperature precise and reliable

4) Audible and visible tracking alarm indicates over-temperature and low temperature.
as well as liquid level protecting function, which all provide samples reliable protection, and ensure no accident

5) Recorder and printer are options which can print or record set parameters and trace variation curves of temperature.

Specifications:

Model	Temperature Range	Precision	Peristome Dimension (mm)WDH	Cubage	Electrical Requirement	Pump(flux)	Input Power
MP-5H	RT+5~100^oC	±0.1^oC	150160150	6.7L	220V 50HZ	4L/m	2000W
MP-13H	RT+5~100^oC	±0.1^oC	240170150	10.9L
MP-19H	RT+5~100^oC	±0.1^oC	330300150	22.5L

* When it is used in the case of above 80°C,use mineral oil as liquid medium.

* When it is used in the case of below 5°C,use antifreeze(absolute alcohol or absolute glycol) as liquid medium.

* Ambient temperature is+5~35°C.

Notes: Tube holders are options.

Specification test condition: ambient temperature is 20^oC; Electrical requirements are 220V/50HZ;liquid medium is pure water.
