| We formed 12 series, 300 different kinds of cells and optical cells, which apply to photo electrons, optical spectrum analyses in industries of chemistry, metallurgy, environmental protection, medicinal tests, hospitals, power stations, water works, scientific research institutions etc. Many world-famous optical spectrum works chose our products as necessary accessories of theirs. | | | | The Transmission features of our cell guaranteed transmission values on empty cells and deviations in matched set | Material | Code | Transmission On Empty Cell | Deviations In Matching | Optical Glass | G | At 350nm appro.82% | At 350nm Max.0.5% | UV Quartz Glass | H | At 220nm appro.80% | At 350nm Max.0.5% | ES Quartz Glass | Q | At 220nm appro.80% | At 200nm Max.0.5% | IR Quartz Glass | I | At 2730nm appro.88% | At 2730nm Max.0.5% |

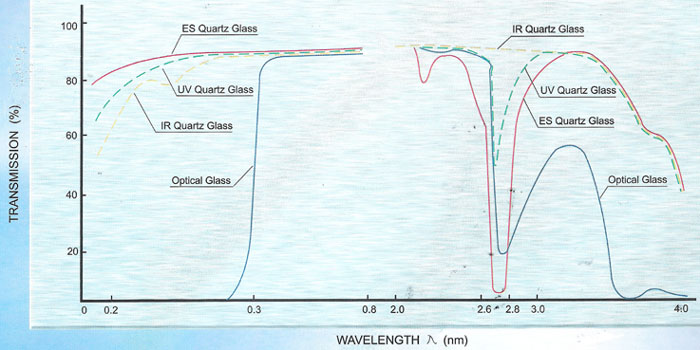

| | | | Transmission Curves | | Transmission measured on empty cells: window Thickness 1.25nm*2 | | (Including surface reflection losses) |  | | |
