S22PC

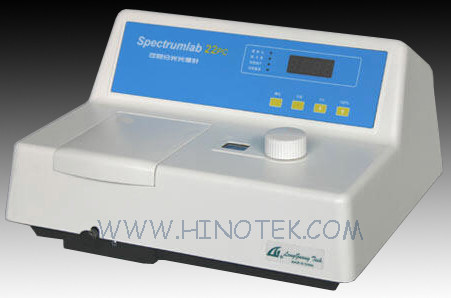

S22PC Visible Spectrophotometer

S22PC is a new generation of intelligent spectrophotometer on the basis of microcomputer. It can be used in the fields of physics, chemistry, medicine, biology and pharmacology for scientific usage or for quantitative analysis of a variety of materials in the laboratories of chemical, food, pharmaceutical, metallurgical industries, clinical biochemical and environmental protection departments.

Application:

Display Mode	4digit(LED)
Transmittance Accuracy	±0.5%T
Transmittance Repeatability	0.3%T
Stray Radiant Energy	<0.2%T (NaNO2)
Power Supply	110/220V±10%
Weight	7kg

Specifications:

Wavelength Range	340~1000nm	Display Mode	4digit(LED)
Wavelength Accuracy	+/-2nm	Transmittance Accuracy	±0.5%T
Wavelength Repeatability	1nm	Transmittance Repeatability	0.3%T
Photometric Range	0.0-199.9%T	Stray Radiant Energy	<0.2%T (NaNO2)
	-0.3-2.999A
	1~9999F
	0~9999C
Spectral Slit Width	6nm	Power Supply	110/220V±10%
Weight	7kg

Feature:

◆Built-in PC and scientific program setting make the instrument have remarkable data processing and control functions.
◆Built-in standard RS232C interface can be linked up with PC. Special spectrumlab software package is used to expand its functions.
◆Simple & clear keyboard operation is convenient to realize auto 0%T & 100%T adjustment and error-free T/A transformation. It has factor setting and direct concentration readout functions.
◆Special serial or parallel printer can be chosen and direct printed output can be realized.
