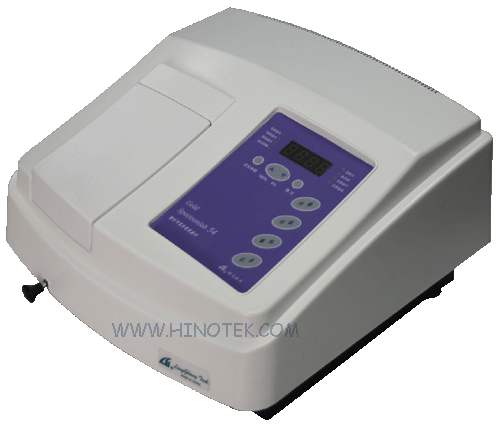

Glod S54 UV-Visible Spectrophotometer | | | | | MODEL: Gold S54 | | ProductStandard: EnterpriseStandard Q/SEEK3 | | DISPLAY STYLE: 4 LED | | DEMENSION: 450*435*305 | | WEIGHT Net 10kg Gross 12.5kg |
| | | DESCRIPTION | | 1. Japanese Hamamatsu L2D2 steady, high-luminosity, more than 3000hours lifetime Deuterium lamp; Japanese more than 10000hours lifetime Halogen-Tungsten Lamp; Hamamatsu 1226 UV-receiver; Patent compages technology of lamp parts. | | 2. Automatically wide range of wavelength scanning & dynamics scanning. | | 3. Non-spherical optical path of light source, CT grating monochromator. | | 4. Large sample compartment£¬4-positions sample cuvette rack£¬optional 5cm optical length rectangular cuvettes. | | 5. With a special software for spectrogram scanning & quantitative data processing , operating prompt with menu . | | 6. built-in RS-232C serial port interface & standard parallel print port . |
| | | FEATURE: | | The Gold S54 UV-Visible spectrophotometer is a 2nm spectral slit width concise easy-operated general use spectrophotometric instrument with wide rang of wavelength. It can measure transmittance- absorbance and direct reading within the wavelengths of 200-1000 nm. This instrument is widely used in medical science and hygiene, clinical analysis, biochemistry, petroleum chemical industry, environmental monitoring and quality control department for qualitative and quantitative analyses. |
| Optical system£º | Diffraction grating C-T monochromator | | Wavelength range£º | 200~1000nm | | Light source£º | Hamamatsu L2D2 long life high stable deuterium & tungsten lamp combination | | Receiver: | Hamamatsu 1226 UV receiver | | Wavelength accuracy: | 1nm | | Wavelength repeatability: | 0.5 nm | | Transmittance accuracy: | 0.5%(t) (NBS SRM930D) | | Transmittance repeatability: | 0.3%(t) | | Spectrum bandwidth: | 2nm | | Stray light: | <0.2%(t) (360nm, NaNO2) (220nm, NaI) | | Display scales: | (T)0.0~199.9% | (A) -0.3~2.999 | (F)1~9999 | (C)0~ 9999 | | Power source: | 110V or 220V | | RS-232C serial port interface & standard parallel print port |
| | | Basic Kit: | | 1 | Gold S54 Spectrophotometer | 1 pc | | 2 | 1cm rectangular cell(quartz) | 1 set(2 pcs) | | 3 | 1cm rectangular cell(glass) | 1 set(4 pcs) | | 4 | 1cm 4 position cell holder | 1 pc | | 5 | Power cable | 1 pc | | 6 | Operating manual | 1 pc | | 7 | Certification of quality checking | 1 pc | | 8 | Packing list | 1 pc | | 9 | Fuse (2A) | 2 pcs | | 10 | Gold S54 qualitative & quantitative software package | 1 set |
| | | Optional Accessories & Spare Parts | | 1. Fuse (2A/3A) | | 2. Source lamp assembly with pre-adjusted lamp holder( halogen lamp, deuterium lamp) | | 3. Rectangular cell 1, 2, 3, 5 cm (glass), 1 cm (quartz hermetical) | | 4. 5 cm optical path cuvette rack | | 5. RS232C serial interface cable |
|
: |
|
|
