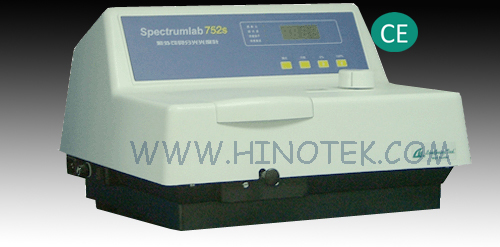

752S UV-VIS SPECTROPHOTOMETER |
| |
|
| Display Model: 4 digital LED |
| Lamp: Patent assembled Hamamatsu L2D2 long life Deuterium Lamp and RoYal long life |
| Halogen-Tungsten Lamp |
| Optical system: C-T configuration diffraction grating monochromator |
| Interface:RS232 serial port |
| Dimensions: 370/320/240 mm |
| Weight: 10Kg |
| |
| Features: |
| * Whole aluminum metal alloy die-castings. |
| * Patent assembled pre-aligned deuterium and halogen-tungsten lamp,long life and simple maintenance. |
| * Advanced optical system ensures low stray light. |
| * Built in SCM technology,auto 0%,auto 100%,error-free T/A transformation. |
| * Transmittance test, absorbance test, concentration factor setting or concentration direct readout functions. |
| * Analysis with data processing software. |
| * Spacious sample compartment, 4 position cuvette rack, adaptable for 1-5cm optical path rectangular cuvettes. |
| |
| Specifications: |
| Wavelength Range: | 200-960 nm | | Wavelength Accuracy: | 2nm | | Wavelength Reproducibility: | <1nm | | Spectral band width: | 2nm | | Photometric Accuracy: | 0.5%(t) | | Photometric Reproducibility: | 0.3%(t) | | Stray Light: | <0.5%(t) (360nm, NaNO2) (220nm, NaI) | | Photometric range: | TRANS: 0-199.9% | | ABS: -0.3-2.999 | | FACT: 1-9999 | | CONC: 0-9999 |
|
| |
| Standard Configuration: | | 1) 752S spectrophotometer 1 set | | 2) Power cable 1 pc | | 3) User Manual 1 pc | | 4) Certificate of quality checking 1 pc | | 5) Fuses (2A) 2 pcs | | 6) 1cm glass cuvette 2 pairs | | 7) 1cm quartz cuvette 1 pair | | 8) 1cm 4 position cuvette rack 1 pc | | 9) Packing list 1 pc |
|
| |
| Optional Accessories: | | 1) Fuse (2A/3A) | | 2) Assembled pre-aligned deuterium and halogen-tungsten lamp | | 3) Glass cuvette 1 cm, 2 cm, 3 cm, 5cm | | 4) Quartz cuvette 1cm, 2cm, 3cm, 5cm | | 5) 5 cm cuvette rack £¨adaptable for 1-5cm cuvette | | 6) Praseodymium-Neodymium optical filter | | 7) Holmium oxide optical filter | | 8) Mini printer | | 9) Printer cable | | 10) Data processing software package | | 11) Comunication cable |
|
