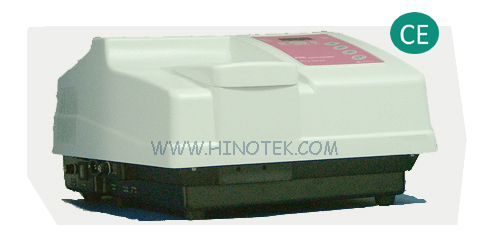

F96/F96 Pro Fluorescent Spectrophotometer | |
| | | | | The measuring sensitivity of fluorescent spectrophotometry is 2-3 order higher than that of UV VIS spectrophotometry. It can offer the information of excitation & emission spectrum, light emitting intensity & life, quantum yield rate, fluorescence polarization etc. and a wide linear range of operating curve, so that it has become an important means involved in trace analysis. | | | | Feature: | | * Whole aluminum metal alloy die-castings. | | * The emission monochromator adopts 1200 line diffraction grating, its large aperture and non-spherical reflecting mirrors produces extra high sensitivity. | | * High stable and long life Xenon lamp and it's power ensure high stable testing and wide range of spectrum. | | * High performance photomultiplier to gain best signal-noise ratio. | | * Built in SCM technology,auto 0% and auto background subtraction. | | * 0-7 stage gain adjustment. | | * Real time fluorescence reading and concentration printout. | | * Sigle-point sample concentration direct reading ability. | | * Provide 2 working modes: main unit test mode and software test mode. | | * Quantitative and qulitative software with PC, full automation, three regular fuction, kinetics measurement, quantitative measurement and spectrum scan. | | | | F96 Specifications: | | |
| Exciting Filter Wavelength Range | Ex200~750nm (optional,expand to 750nm) * | | Emission Wavelength Range | (200-650) nm (Expand to 800nm) | | Emission Wavelength Accuracy | ±2nm | | Emission Wavelength Reproducibility | <1nm | | Sensitivity | S/N ≥50 (Raman peak of water
in 1cm quartz fluorescence cuvette) | | Linearity Deviation | ± 3.0% |  | 4digit(LED) | | Lamp | Hamamatsu 150W Xenon Lamp | | Optical System | C-T configuration diffraction grating monochromator
(EM 200-750nm, Spectral bandwidth 12nm) | | Interface | RS232 Serial Port | | Dimension | 380*430*240 | | Weight | 12KG | | * Standard configuration: Central wavelength at 365nm optical filter, 10nm banwidth, dia 25mm) |
| F96 Standard Configuration: | | F96 Spectrophotometer 1 PC | | Power cable 1 PC | | Operation Manual 1 pc | | Fuses (5 A) 2 pcs | | 1 cm quartz fluorescence cuvettes　1 Pairs | | Quantitative and qulitative software package 1 set | | Packing list 1 PC | | | | Optional Accessories and Spare Parts: | | 1. Fuse（5A） | | 2. Xenon lamp | | 3. Xenon lamp power | | 4. Xenon lamp trigger | | 5. 200-750nm interference optical exciting filter(10 nm bandwidth, dia 25mm) I.254nm, 287nm, 313nm, 4058nm, 420nm, 436nm, 480nm, 492bm, 525nm | | 6. Quartz fluorescence cuvette 0.5cm, 1cm | | 7. Glass fluorescence cuvette 0.5cm, 1cm | | 8. 1cm cuvette rack | | 9. mini printer | | 10. Mini printer cable |

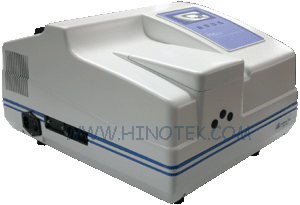

| | | | F96 Pro spectrophotometer | | F96 Pro spectrophotometer Spec: |
| Light source | 150W Xenon lamp (consumable part) | | Excitation filter | Filter character: ±5nm labeled | | (An interference filter with center wavelength 365nm used as standard configuration. Users may separately purchase other dia.25mm interference filters with center wavelength within 200-850nm range.) | | Emission monochromator | Emission monochromator wavelength range: (Em) 200―900nm | | Wavelength accuracy within ±1nm | | Wavelength repetition ≤0.5nm | | Emission spectrum bandwidth: 10nm | | S⁄N ratio | S/N>150 (Using 1cm quartz sample cell, measure the signal noise ratio of Raman spectrum of water ) | | Check utmost | 1x10-10 g/ml sulfuric acid quinine solution | | Measure linearity | >0.995 | | Peak value | <1.5% | | Zero line drift | <0.3% (Within 10 minutes) | | Upper limit change of indicating value | ±1.5% (Within 10 minutes) | | Power requirement | 220V±22V 110V/60HZ | | Dimensions | 442×392×250（mm） | | Net weight | 11kg | | Gross weight | 13kg |
| F96 Pro Standard Package | | | Main instrument | 1 set | | 365nm filter(Preassembled) | 1 pc | | F96PRO software package | 1 set | | Power cable | 1 pc | | USB wire | 1 pc | | Instruction manual | 1 copy | | Product quality certificate | 1 copy | | Fuse 2A | 2 pcs | | Fuse 5A | 2 pcs | | Quartz fluorescence sample cell10mm | 1 pair | | Packing list | 1 copy | | | | | | | | Optional Spare Parts and Accessories | | | 1.Fuses 2A 5A | | | 2.200~850nm interference optical filter(φ25mm) | | | 3.Quartz fluorescence sample cell10mm | | | 4.Personal computer | | | 5.Printer cable | | | 6.Dedicated serial interface printer | |
|
: |
|
|
