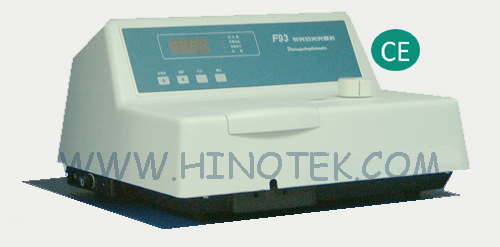

F93 Fluorescent Spectrophotometer

F93 Fluorescent Spectrophotometer

Application:

Fluorescent spectrophotometry is a kind of modern spectrophotometry with high sensitivity and selectivity. It can offer the information of excitation & emission spectrum, light emitting intensity & life, fluorescence polarization etc. and a wide linear range of operating curve, so that it has become an important means involved in trace analysis.

It can be applied to the fields below:
◆Medical & clinical tests-Clinical analysis of biogenic testing material
◆Pharmaceutics & pharmacology-Natural pharmacon analysis, pharmaceutical quality control and pharmacon metabolism research
◆Biochemistry-Minute quantity substance measurement in biological body
◆Food industry-Measurement of trace components in food
◆Pollutant analysis-Air pollution, environmental hygiene detection, food pollutants etc.
◆Organic & inorganic chemistry-Analysis of trace components which can not be measured with absorptive spectrophotometry.

Features:
◆Special light source with high brightness and long service life, avoiding the interference of high-voltage impulse to the instrument caused by lamp power . One time longer service life than high-pressure xenon lamp and high-pressure mercury lamp.
◆Low noise and high sensitivity with well performed HAMAMATSU photomultiplier. Best instrumental S/N can reach to 1X10-9/ml(quinine slufate).
◆Good thermal stability, can be used in the relatively abominable environment.

Specifications:

Wavelength Range

Ex360~600nm (with 365nm interference filters)
Em360~650nm (With C-T monochromator)

Wavelength Accuracy
EM≤ ±2nm
Sensitivity
1X10-9 (quinine sulfate)
Linearity Error
≤ ±3.0%
Wavelength reproducibility
EM= ±1nm
:
