Polarimeter
| |
|
WXG-4 Disc Polarmeter |
Characteristics:
* Visual aim
* Manual measure
* Easy to operate.
Specifications: |
| Measurement range: |
-180°~ +180° |
| Minimum Reading: |
0.05° |
| Accuracy: |
±0.05° |
| Sensitivity: |
0.05° |
| Weight (Net): |
7.6kg |
| Overall Dimensions: |
510mm*135mm*250mm |
|
|
|
|
|
|

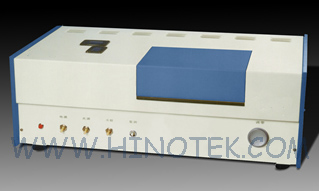

WZZ-1 Automatic Polarimeter |
Characteristics:
* Photoelectric test
* Photoelectric test
* Display by index plate
* Easy to operate.
Specification: |
| Measurement range: |
-45° ~ +45° |
| Minimum Reading: |
0.01° |
| Accuracy: |
±(0.01°+ Measurement value*0.05 %) |
| Repeatability (Max. Deviation): |
≤0.01° |
| Minimum sample transmittance: |
10% |
| Weight (Net): |
29kg |
| Overall Dimensions: |
600mm*320mm*200mm |
|
|
|
|
|
|
WZZ-2B Automatic Polarimeter |
Characteristics:
* Photoelectric test and automatic servomechanism control.
* LCD display.
* Storage of three times results of Re-M (repetition-measurement) and calculation of average values.
* RS232 interface.
Specifications: |
| Measurement range: |
-45° ~ +45° |
| Minimum Reading: |
0.005° |
| Accuracy: |
±(0.01°+ Measurement value*0.05 %) |
| Repeatability (Max. Deviation): |
≤0.01° |
| Minimum sample transmittance: |
10% |
| Weight (Net): |
28 kg |
|
|
|
|
|
|
WZZ - 3 Automatic Polarimeter |
Characteristics:
* Photoelectric test and microcomputer control.
* LCD display
* Measuring specific rotation, optical rotation and sugar degree
* Automatic repetition-measurement for 6 times, and calculation of average value and means square root
* RS232 interface
Specifications: |
| Measurement range: |
-45° ~ +45°, -120°Z ~ +120°Z (Sugar Degree) |
| Minimum Reading: |
0.001° |
| Accuracy: |
±(0.01°+ Measurement value*0.05 %) |
±(0.03°Z+ Measurement value*0.05 %) |
| Repeatability (Standard Deviation s): |
≤ 0.003° , ≤ 0.03°Z |
| Minimum sample transmittance: |
10% |
| Weight (Net) |
28 kg |
| Overall dimensions: |
600mm*310mm*212mm |
|
|
|
|
|

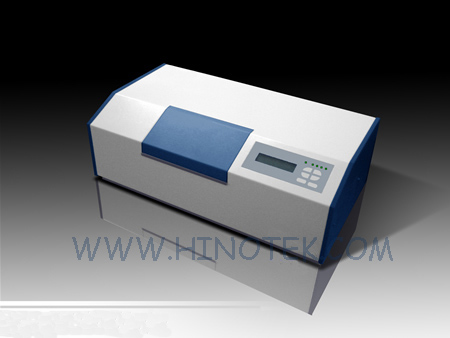

WZZ-2S(2SS) Automatic Polarimeter |
Characteristics:
* Domestic advanced digital circuit and microcomputer control.
* LCD display
* Storage of three times results of Re-M (repetition-measurement) and calculation of average value.
* Measurement of dark-colored sample
* RS232 interface
Specifications: |
| Measurement range: |
2S: -45°+45°, 2SS: -120°Z-+120°Z |
| Minimum Reading: |
2S: 0.001°, 2SS: 0.01°Z |
| Accuracy: |
2S: ±(0.01°+ Measurement value * 0.05 %) |
2SS: ±(0.03°Z+ Measurement value * 0.05 %) |
| Repeatability (Standard Deviation s): |
2S:≤ 0.002°, 2SS: ≤ 0.02°Z |
| Minimum sample transmittance: |
1% |
| Weight (Net): |
30 kg |
| Overall dimensions: |
600mm*320mm*220mm |
|
|
|

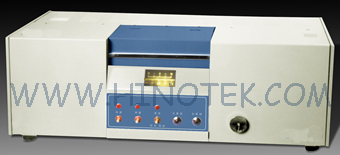

WZZ-T1 & WZZ-T2 Projection Automatic Polarimeter |
| Characteristics: |
| * High Precision of index plate |
| * Measurement angle to be displayed on the glass screen |
| * Easy to operate |
| |
| Specification: |
| Measurement range: |
-45°~+45°, -40°Z~+110°Z(T2) |
| Minimum Reading |
0.01°, 0.1°Z |
| Accuracy: |
±(0.01°+Measurement valveX0.05%) |
±(0.03°+Measurement valveX0.05%) |
| Repeatability (Max.Deviation): |
≤0.01°, ≤0.03°Z |
| Minimum Sample transmittance: |
1% |
| weight(net): |
35KG |
| Overall Dimensions: |
750mmX380mmX270mm |
: |
|
|
