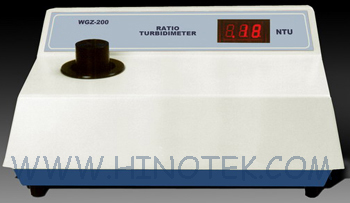

WGZ-200 Ratio Turbidimeter | Characteristic: can be used to measure light scatter and decay of the insolubility suspended particulate, and quantitative analysis the contents of particulate | Measuring range : 0.00-199NTU | Minimum readout : 0.01(0.00-1.99) , 0.1(2.0-19.9) , 1(20-199) | Quality : 8kg | | Outer Size: 358mm*323mm*160mm | |

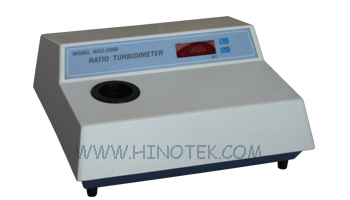

| | | | WGZ-2000 Ratio Turbidimeter | Model WGZ-2000 Turbimeter is an instrument used to measure the degree of scattering or attenuating of light produced by insoluble particles suspended in water (transparent liquid). The instrument can also quantify the content of these insoluble particles. With its characteristics of having wider measurement range and being easy to operate, this instrument is suitable to be used in waterworks, food industry, chemical industry, power plants, metallurgical and environment protection and pharmaceutical industries, etc. It is an instrument commonly used in laboratories. | | | | Specification: | | * Light source: Tungsten halogen lamp 6V, 12W | | * Receiving element: Silicon photocell | * Measurement ranges NTU:
0.00--19.99
20.0--199.9
200-2000 (automatic range switchover) | | * Readings display: 4 digits LED display | | * Linearity error: 3% FS | | * Allowable error of indication: ≤±5% | | * Sample bottle: Φ 25 mm*95 mm | | * Sample volume: 20~30 ml | | * G..W: 8 kg | | * Overall dimensions: 358 mm×323 mm×160 mm | | * Fuse: RF1-20 1A 250V |
| |

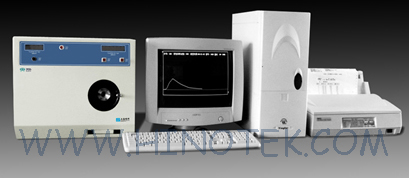

WQL Particle Size Analyzer |
| Characteristic: | * Measurement of Particle size and distribution based on the centrifugal settling of solid particle and light transmittance principle. | * Speed-Change measurement mode. | * The ratio of particle size range in one measurement is greater than 20:1 | | | Specification: | | * Disc Rotaion Speed: 600~10000RPM | * Stability: 0.2%/30min | * Measurement range: 0.01~60um | * Accuravy:5% (Based on the SiO2 Standard sample provided by Shanghai Test Technology Research Institute.) |
| WQS Vibrator With Sieve | Characteristic: | | * Particle analysis. widely used in the field of pharmaceutical industry, food, cosmetics, grain. | | * Advaced integrated circuit control easy to operate. | | | | Specification: | | * Vibration direction: Vertically Vibration | | * Measurement Range:≤325 mesh | | * weight(net): 20kg | | * Overall Dimension: 400mm*300mm*200mm | | | | | | | | |
WYL-2 Stress Analyze Meter |
| Characteristic: | * Quick and large amount for test by means of measuring double reflection generated by internal stress of transparent materials. | * Widely used in the fields of optical glasses, glass products and transparent plastic products. | | Specification: | | * Measurement range:≤560nm | | * Optical-path-deffrence of retardation plae:560nm | * Table glass diameter: Ø150mm | * Table glass diameter: Ø220mm | | * Overall Dimensions: 510mm*135mm*250mm | |
|
: |
|
|
