Colorimeter, Tintometer, Photometer, White Meter & Color Diffrence Meter |
| | Photoelectric Colorimeter |
| Characteristic:
New AE-11M & AE-11D are designed for simple operation with durable function and permit speedy accurate mesurement in routine analysis. The optical system consist of the lamp, Hear-absorption fillter, Lens and Diaphragm. The light traversing in this system falls on the ourrent renerating photo-cell which actuates a direct reading miereammeter(of AE-11M)or LED display(of AE-11D). | | | | Specification: | | High Stability & Reproducibility: | Wavelength reproducibility +/- 5nm | | Economy: | Consumes only 1.5ml of reagent | | Dconomy: | Sillcon photo-cell | | Filter: | 405,492,546,578,660nm; or 420,470,530,620,660(glass) | | Wavelength Range: | 420-660nm | | Photoelectric Range | Trafismittancy T% 1-100% in 100div, Absorption-log T 0-2.0 | | Photoelectric Accuracy: | +/- 2T | | Light Source: | 6V 0.5A tungsten lamp | | Indicator: | AE-11M 250µA Micro-ammeter, AE-11D three-digit display | | Power Supply: | 110V or 220V AC 10W | | Dimenslon: | 280*220*122mm, 360*360*200 | | Net Weight: | 3kg | | | | | |

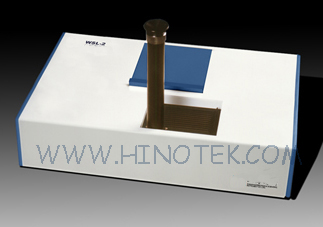

| WSL-2 Tintometer | | Characteristic: visual measure color matching to determine material color, measure up to the well-know color scale of lovibond unit; simple structure; easy operation | Measuring range : | Red R0.1-R79.9 lovibond unit | Yellow R0.1-R79.9 lovibond unit | Blue B0.1-B49.9 lovibond unit | Neutral N0.1-N3.9 lovibond unit | Minimum readout : 0.1 | Quality (Net) : 11kg |
WSC-F Spectroscopical Color Photometer |
| Characteristic:
The meter can display the reflectance and transmittance of object in visible light band(400nm-700nm) and communicates with the computer through interface to draw the spectrum curve of reflected color. it is convenient to analyzer the color of objects. The meter is widely used in various fields, such as textile, dye, printing and dyeing, dope, paint, paper-making, construction material, food and printing, etc. | | | | Specification: | * Illumination conditions of the instrument: o/d | * Speetral condition: combination of GB3978 standard illuminant D65, A,C and 10°, 20° wide viewing field matching function values(X,Y,Z) | * Precision of transmittance(%):±1.5 | * Stability: ΔY≤0.4 | | | |
| | WSB-L White Meter | Characteristic: measure the blue whiteness of the matter, such as papers, building materials, amylum, flour, sugar and salt; manual correct; applicable for small and medium enterprises | Measuring range : 0-120 | Illumination geometric conditions of the instrument : 45/0 | Peak of wavelength : 457nm | Stability: ±0.2 | Repeatability : 0.3 | Accuracy : ±1.5% |
| |

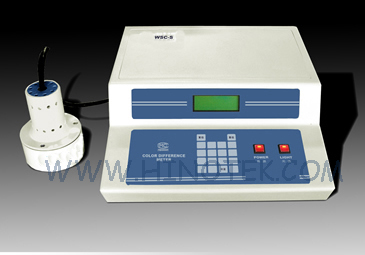

| WSC-S Color Meter and Color Diffrence Meter | Characteristic: measure the reflected color of matter, such as board type, powdery, graininess; automatic measurement; LED display; has printer interface and
RS232 connector | Illumination geometric conditions of the instrument: o/d | Light source of the sample: Combination of CIE standard luminant D65 and 10° wide viewing field X 10 ,Y 10 ,Z 10 of CIE | Accuracy: ΔY =3, Δx =0.02, Δy =0.02 | Repeatability: σu(Y)≤0.5，σu(x)≤0.003，σ(y)≤0.003 | Stability: ΔY≤0.6 | Quality (Net) : 17kg | Outer Size : 410mmX370mmX160mm |
|
: |
|
|
