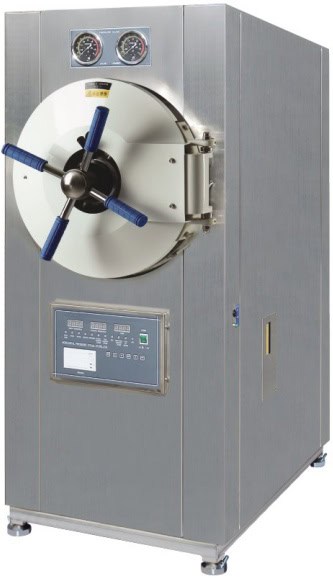

WS-150YDD Series Horizontal Autoclave

The horizontal autoclave, which adopts the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber teperature during sterilizing. This Unit is an ideal equipment for clinics, scientific research institutes and other oraginzations to sterilize surgical instruments, Fabric glassed, and the culture media etc.

Characteristics

  • Automatically controlled the sterilization process, easy to operate
  • With drying function, suitable for the medical dressing drying.
  • With over-temperature, over-pressure auto-protect
  • The door can not be open until pressure in the chamber is reduced to 0.27MPa. And the unit can not started on if the door doesnt close well
  • The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
  • Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
  • Fully stainless steel structure.
  • With printer
Technical data WS-150YDD WS-200YDD WS-280YDD
Sterilizing chamber

 volume

150L

φ440×1000mm

200L

φ515×1000mm

280L

φ600×1000mm

working pressure 0.22 MPa
working  temperature 134℃
Adjustment of temperature 40℃ – 134℃
Time of sterilization 0-99 min
Time of drying 0-99 min
Heat average ≤± 2℃
Power 9KW/380V 50Hz 9KW/380V 50Hz 12KW/380V 50Hz
Dimension 1400×650×1600 1400×750×1700 1520×910×1900
Transport dimension 1560×820×1820 1560×910×1880 1680×1080×2100
 G.W/N.W 430/340 KG 436/350 KG 570/462 KG
