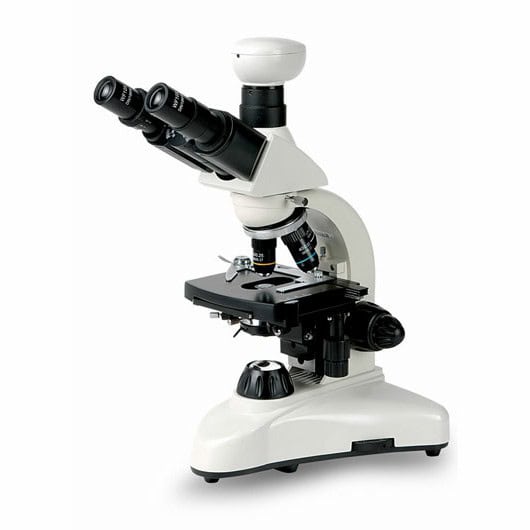

Model XSZ-152 Digital Microscope is a reformation of the microscope. It breaks through the utmost of the functions of the normal microscope and initiates an epoch in microtechnology! Through installing CMOS transmitting it to the computer by digital technology being applied in the microscope enlarges the application range of microscopes.
The image measuring software which is specially developed for digital microscope makes the user observe the image data more clearly.The image displayed on the screen of the computer can be enlarged hundreds of times more than the one observed by the eyepiece.That makes you observe the specimen more clearly and easily.
|
Specification
|
Model
|
|
|
XSZ-152SE
|
||
|
Viewing head
|
0.3Mega pixels CMOS Digital Compensation Free Binocular
Head. Inclined at 30 o
|
○
|
|
1.3Mega pixels CMOS Digital Compensation Free Binocular
Head. Inclined at 30 o
|
●
|
|
|
Interpupillary Distance
|
55mm -75mm
|
●
|
|
Eyepiece
|
WF10X/ 18mm
|
●
|
|
Objective
|
Achromatic objective: objective:4X,10X,40X(S),100X(S)Oil
|
●
|
|
Condenser
|
N. A.1.25 Abbe condenser with iris diaphragm&filter
|
●
|
|
Focusing
|
Coaxial coarse&fine focusing adjustment with rack and pinion
mechanism Fine focusing scale Value 0.002mm
|
●
|
|
Collector
|
High brightness light collector
|
●
|
|
Light source
|
Halogen bulb 6V/20W.AC 85V-230V
|
●
|
|
Adjustable brightness
|
||
Mark” ● ”standard outfit. Mark:” ○ ”optional parts.
