Specification
|

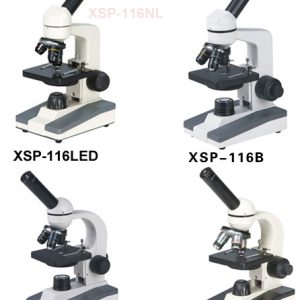

Model
|
||||
|
XSP-116LED
|
XSP-116B
|
XSP-116F
|
XSP-116FB
|
||
|
Viewing Head
|
Monoculer lnclined at
45°
|
●
|
●
|
●
|
●
|
|
360° Rotatable
|
●
|
●
|
●
|
||
|
Eyepiece
|
WF10X
|
●
|
●
|
●
|
●
|
|
Objective
|
Achromatic 4X,10X,40X（s）
|
●
|
●
|
●
|
●
|
|
Stage
|
Plain stage with slide clips
Stage size: 90mmX90mm
|
●
|
●
|
●
|
●
|
|
Condenser
|
Singlelens with Disc diaphragm
|
●
|
●
|
●
|
●
|
|
Focusing
|
Coarse Focusing Adjustment
|
●
|
●
|
●
|
|
|
Coaxial coarse&fine focusing
adjustment Fine focusing scale value
0.002mm
|
●
|
●
|
|||
|
Light Source
|
Incandescent lamp
220V/20W or 110V/20W
|
●
|
●
|
●
|
●
|
|
Optional Accessory
|
Eyepiece：WF16X、WF20X
Objective：20X,60X（s）
LED illumination
|
||||
