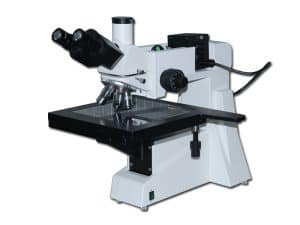

XJL-201 Upright Metallurgical Microscope

Description
  • XJL-201 series reflected metallurgical microscopes are suitable to observe the microscopical surfaces of the non-transparent object. They are equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular. They have clear and high-contrast picture beautiful sculpt, convenient control and etc. they are the ideal instrument in research work in metallography, mineralogy, precision engineering, electronics and etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.
  • Features
    ▲  With plan, achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
    ▲  With large move range mechanical stages can move quickly and slowly.
    ▲  Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
    ▲  6V 20W Halogen lamp, brightness control.
    ▲  Trinocular, can switch to observe normally or to observe the polarized, can send 100% of light to the binocular eyepieces or to the top port.
Specification
  • Standard Configuration
    Model
    XJL-201
    XJL-201A
    Eyepiece
    Wide field  WF10X(Φ18mm)
    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
    Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
    Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
    Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60
    Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80
    Eyepieces tube
    Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch)
    Vertical illumination unit
    6V 20w, halogen lamp, adjustable brightness
    Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter
    Focus system
    Vertical adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing2μm.
    Nosepiece
    Quintuple(Frontward ball bearing inner locating)
    Stage
    Three layer mechanical
    Size:250mmX230mm,movingrange:154mmX154mm
    Three layer mechanical
    Size:280mmX270mm,movingrange:204mmX204mm
SKU: xjl-201-series Category: Tag:

Catalog

Download Brochure

Dimension

Optional Accessories

Name
Sort/Technique parameter
 NO.
Eyepiece
Wide field  WF16X(Φ11mm)
1051016
Dividing  10X(¦µ18mm)   0.1mm/Div
1021010
Objective

Plan achromatic objectives with long working distance (no cover glass)

PL L 50X/0.70
2250150
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring)
2250160
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring)
2250111

Plan achromatic objectives (no cover glass)

PL 100X/1.25  (Spring, oil)
2240111
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 With USB & video output
800001
DV-2 With USB output
800003
DV-3 With video output
800005
Photo unit
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840003
PK Adapter
840004
Digital camera adapter
CANON(A610,A620,A630,A640)
820001
