XDY-1

SKU: xdy-1 Category: Tag:

Description

Description

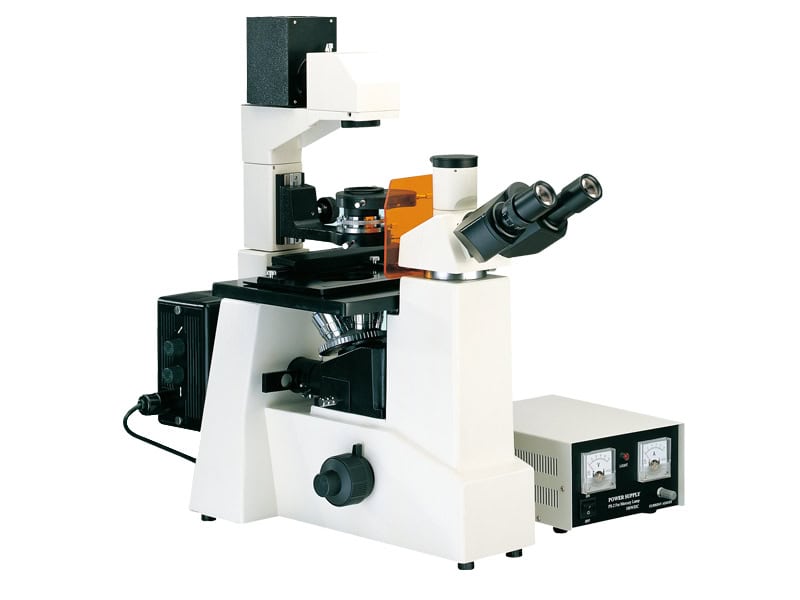

  • XDY-1 Inverted & Reflected Fluorescence Microscopes is composed with inverted microscope and reflected fluorescence microscope, equipped with long working distances plan achromatic objectives and wide field eyepieces, you can use long working distance phase contrast objectives and special long working distance condenser with phase contrast unit when inverted observation, and change the fluorescence excitation system freely. The microscope has clear image, wide field, compact framework, beautility sculpt and comfortable operation etc. It’s mainly applied to observe the living cell and tissue, liquid and deposits etc, also to observe transparent living without staining and fluorescence slice up, it is the ideal instrument for researching in biology, cells cytology, oncology, genetics, immunology etc. The microscope can be used for scientific researching, medical treatment, epidemic prevention and animal husbandry etc.








Specification
  • Standard Configuration

    Model
    XDY-1
    Eyepiece
    Wide field eyepiece WF10X(¦µ20mm)
    Objective
    Long working distance plan achromatic objectives PL L 10X/0.25
    Long working distance plan achromatic objectives PL L 25X/0.40
    Long working distance plan achromatic objectives PL L 40X/0.60
    Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2
    Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2
    Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2
    Eyepiece tube
    Trinocular (Inclination of 30°, 100% image light for photography capable)
    Focus system
    Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    Nosepiece
    Quintuple (Ball bearing inner locating)
    Stage
    Double layer mechanical (Size: 224mmX208mm, moving range: 112mmX79mm)
    Filter
    Blue filter
    Green filter


    Shelf of specimen
    Match to install ¦µ68mm or 77mmX29mm culture utensil
    Match to install 82mmX57mm culture utensil
    Match to install 128mmX85mm 96 holes culture utensil
    Reflected fluorescence system
    Mercury lamp house 100W/DC
    Power supply unit:AV:110V or 220V
    Fluorescence filter system B exciton wavelength:450~490nm
    Fluorescence filter system G exciton wavelength:495~555nm
    Fluorescence filter system UV exciton wavelength:320~380nm
    Fluorescence filter system V exciton wavelength:380~415nm
    Turnplate phase contrast unit
    Centering telescope

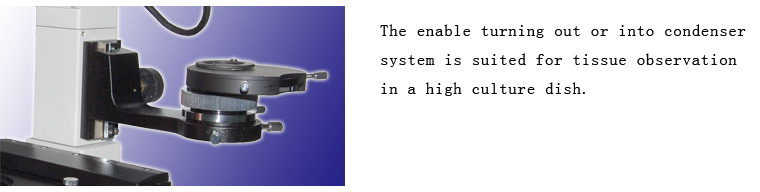

    Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm
    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(¦µ11mm)
    1051016
    Dividing 10X (¦µ20mm), 0.1mm/Div
    1120010
    Condenser
    Ultra long working distance,W.D.:70mm
    050006
    Filter
    Yellow filter
    115003
    Fluorescence power supply
    100W fluorescence power supply(Wide voltage range and constant power and calculagraph)
    100003
    Phase contras
    Compensation phase contrast
    112102
    CCD adapter
    0.4X
    812001
    0.5X
    812004
    1X
    812002
    0.5X with dividing 0.1mm/Div
    812003
    Camera
    DV-1(With USB & video output)
    800001
    DV-2(With USB output)
    800003
    DV-3(With video output)
    800005
    Digital camera adapter
    CANON digital camera adapter(A610,A620,A630,A640)
    821001
    Photograph unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    MD Adapter
    840003
    PK Adapter
    840004



Diagram



Dimensions
