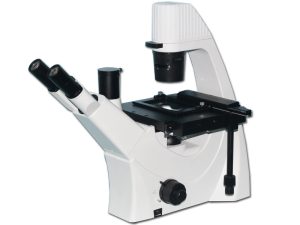

XDS-5 Inverted Biological Microscope

Description


Specification
  • Main parameters

    Total magnification

    100X~400X(standard)

    Mechanical tube length

    Conjugate distance of objective

    Eyepiece

    Wide-field eyepiece

    WF 10X

    field of view number Ф22mm

    Eyepiece interface

    Ф30mm

    Parfocal distance

    10mm

    Centering telescope

    Trinocular

    Inclination 45°,interpupillary disstance48 ~75mm .

    objective

    magnification

    N.A

    Work disstancemm

    Thickness of cover glass (mm)

    Remarks

    10X

    0.25

    4.27

    1.2



    20X

    0.40

    8.0

    1.2



    40X

    0.60

    3.5

    1.2



    Phase-contrast objective

    10X

    0.25

    4.27

    1.2

     Remark”PHP2″

    Nosepiece

    Quintuple

    Focus system

    Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm. Effective distance.11mm

    Condenser

    Long working distance condenser, working distance: 70mm, and with pull board phase contrast unit

    Stage

    Mechanical Stage, moving range 77mm (longitudinal)X112mm (transverse), detachable stage moving device

    Culture dish holder

    86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm

    34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm

    57mm (W)X82mm (L)

    Phase-contrast condenser

    Sliding phase contrast equipment ,center adjustable

    Illumination

    9W LED,adjustble brightness

    Filter

    Frosted grass and blue filter

    Accessory

    hexagonal socket wrenchM4,M5
