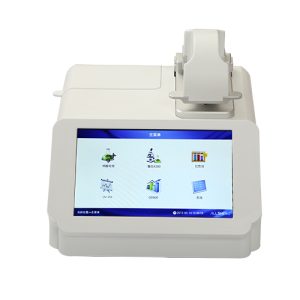

NANO-300 Micro Spectrophotometer

The Nano-300 is an advanced model of Micro UV VIS Spectrophotometer based on Nano-100, with full range of wavelength (200-800nm). It is with an added new function of bacterium cell concentration measurement (OD600) in a cuvette. The Nano-300 only requires 0.5-2ul sample to measure nucleic acids, protein as quickly like Nano-100 do. Nano-300 come with a 7 inch touch screen and integrated Android operating system, with no computer required. It is an ideal equipment for a biology laboratory to make life science research more efficient.

Features:

1. 7 inch touch screen with simple interface. No computer required
2. Android operating system with free software update
3. Only require 0.5-2ul sample to perform accurate measurements.
4. Long life’s Xenon flash lamp for up to 10 years
5. Flexible data output. The data can be printed with built-in printer, and output via USB memory stick
6. OD600 measurement, ideal for bacterial concentration measurement
7. Direct micro-volume measurement with 0.5-2ul of sample. Eliminates the need for expensive accessories.
8. Wide range of wavelength (200-800nm)
9. Turn on and instantly measure without lamp warm up time; Full scan capability from 200-800nm with 6 sec.
10. Switch off automatically when the machine is idle for more than 5mins, and awake by touching the screen.

Technical Data

Model  Nano-300
 Wavelength Range  200~800nm
 Sample Size  0.5~2.0ul
 Path Length  0.2mm (For high concentration measwrement)
 1.0mm (Ordinary concentration)
 Light Source  Xenon flash lamp
 Detector Type  3864-element linear silicon CCD array
 Wavelength Accuracy  1nm
 Spectral Resolution  ≤3nm (FWHM at Hg 546nm)
 Absorbance Precision  0.003Abs
 Absorbance Accuracy  1% (7.332Abs at 260nm)
 Absorbance Range  0.02 – 100A
 Detection Range  10~5000ng/ul (dsDNA)
 Measurement Time  <6s
 Dimensions (W x D x H)mm  210 x 268 x 181
 Data Output  USB, SD-RAM Card
 Weight  2.8kg

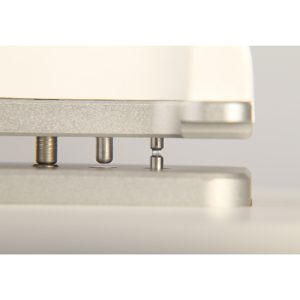

 Sample Pedestal Material  Aluminum alloy and Quartz fiber
 Operating Voltage  24VDC
 Operating Power Consumption  40W
 Standby Power Consumption  5W
 Software Compatibility  Android System
 OD600nm Measurement:
 Light Source  LED
 Wavelength Range  600±8nm
 Abosorbance Range  0~4A

Accessories

ordering information

No.  Code Description
01 AS-11020-00   Nano-300 Micro-Spectrophotometer, DC24V 5W
02 AS-11021-01   Cuvette for Nano-300
