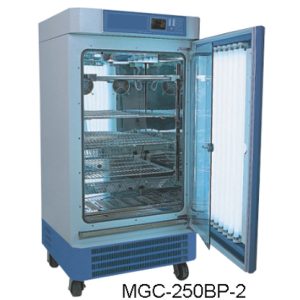

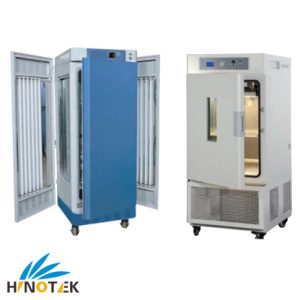

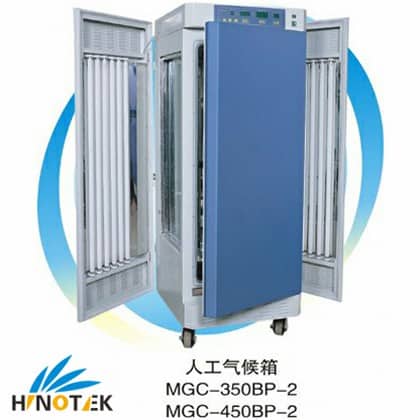

MGC-250BP Series Lighting Incubator/ Artificial climate

Lighting Incubator/ Artificial climate
——–Intelligentized and programmable
Summary:
Latest intelligentized and programmable lighting incubator and artificial climate incubator integrate successful experience of our company in plant and crop cultivation field, which break through the defect of the existing lighting incubators and artificial climate incubators that are unable to run continuously.(The cultivation duration for some farm crops is 3-6 months or even more with the running of incubators uninterrupted).Compared with common types, the latest incubators are characterized by security, reliability and long-term running without interruption. This Incubator Use Freon-Free Compressor to protect environment.

Features:
1. Microprocessor for temperature, humidity, lighting control can set 30 programmed at most. Time range is 1-99 hours for each programmed. The incubators can simulate the temperature and humidity’s change of day and night. You can also select suitable growth surroundings with enough and stable light. It can simulate natural multi-directional light perfectly.
2. Giant-screen LCD(38*130), menu type operating interface, groups-data display in one screen, easily operation.
3. Two imported compressors alternate intelligently to ensure a continuous long working;134a refrigerant, highly efficient with low energy consumption that promotes energy conservations.
4. With mirror surface in stainless steel, foursquare semicircle transition, shelf support handling freely, easy for cleaning within the case.
5. Independent temperature-limited alarm system can automatically interrupt when it is over limit temperature, ensuring the safe operation of the experiment, with no accident.(Option)
6. RS485 connection may link with computer to record data and control experiment.(Optional)
7. MGC-250BP-2 can equipped lighting in top.

Specification:

Specification:
Model
MGC-250BP-2
MGC-350BP-2
MGC-350HP-2
MGC-450BP-2
MGC-450HP-2
MGC-250BPY-2
MGC-350BPY-2
MGC-350HPY-2
MGC-450BPY-2
MGC-450HPY-2
Cubage
250L
300L
450L
Temperature Range
With lighting:10~50oC  Without Lighting:0~50oC
Temperature Control
0.1oC
Temperature Stability
±1oC
Humidity Range 50~90%RH 50~90%RH
Humidity Precision ±5~7%RH ±5 ~ 7%RH
Lighting Intensity
0~12000LX
0~20000LX
0~25000LX
Programmer Function
Temperature, humidity, lighting can be set separately, and 30 programmed can be set at most. Time range is 1~99 hours for each programmed.
Input Power
860W
1700W
2100W
Power
AC220V 50HZ (110V 60Hz Option)
Ambient Tem.
+5~35oC
Continuous Running
Time
Long-term continuous running (two sets of full sealed compressors for automatic alternative shift).
Overall Dimension (mm)W*D*H
722*738*1550
830*850*1850
950*850*1850
Shelves per Chamber(Normal)
3(pcs)

Note: “BP(Y)-2” is LCD Display programmable Lighting Incubator, two compressors
“HPY-2” is programmable Artificial Climate Incubator,two compressors
“Y” is LCD display controller series.

You also can choose LED (Optional) light for it, the advantage of LED include:

1. No thermal interference: The LED beam does not generate heat, and it also can emitted more useful light that is beneficial to plant growth.
2. Energy saving and environmental protection: The energy consumption of LED light sources is extremely low, about 80% lower than ordinary light sources, so the power consumption is extremely low.
3. Small size: LED light source has the characteristics of miniaturization, planarization, and strong designability.
4. Stable and long life: Provide accurate and stable light, with a service life of more than 30,000 hours, and high photoelectric conversion efficiency.
