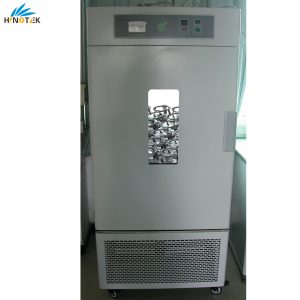

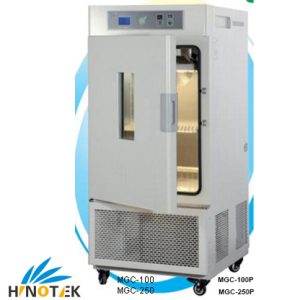

MGC-100/MGC-100H Series Lighting Incubator/ Artificial Climate

Lighting Incubator/ Artificial climate

————Intelligentized microprocessor control

Summary:

Widely applicable for cultivation of biological histocyte, seed gemmation, breeding test, plant cultivation and feeding of insects and beasties. The incubators can simulate different climatic conditions accurately.

Features:
1. This Incubator & artificial climate Use Freon-Free Compressor to protect environment.
2. Microprocessor controller for temperature and humidity ensures a stable and precise control.
3. Temperature-setting function makes the temperature of day and night changed differently with the light alternated from on to off.
4. Independent alarm system for temperature-limiting ensures experiments run safely and no accident would happen.
5. Particular circulating system of air ducts ensures wind distribute evenly in chamber, which prevents plant seedlings from blowing.
6. Specular stainless-steel chamber and semicircular arcs at corners ensures an easy cleaning.
7. Main parts such as compressor and circulating fan are imported for reliability and safety.
8. Microcomputer interface is an option, which can scout process of experiment.(Option)

Option accessories:
* CO2 inlet (facilitating growth of plants).
* CO2 controller (IR CO2 sensor imported).
* RS485/232 Connector and software
* U disk store system
* Wireless alarm system (Mobile message)
* Lighting control system

Specification:

Model

Lighting incubator

Parameter

MGC-100
MGC-100P

MGC-250
MGC-250P

MGC-300A

MGC-300B
MGC-350BP

MGC-400B
MGC-450BP

MGC-800B
MGC-850BP

Cubage

150L

250L

300L

300L

450L

800L

Temperature Range

Without Lighting:4~50°C   With lighting:10~50°C

Temperature Control

0.1°C

Temperature Stability

±1°C

Lighting Intensity

0~12000LX
4 steps adjustable

0~15000LX
4 steps adjustable

0~20000LX
4 steps adjustable

0~25000LX
4 steps adjustable

0~30000LX
4 steps adjustable

Input Power

760W

860W

1400W

1650W

2100W

4000W

Electrical Requirements

AC 220V

AC 380V

Ambient Temperature

+5 ~ 40°C

Continuous Working Time

Not less than 180h

Interior Dimension
(mm)W*D*H

580*400*650

580*510*385

520*550*1140

700*550*1140

965*580*1430

Overall Dimension
(mm)W*D*H

725*630*1365

725*738*1550

830*850*1850

950*850*1850

1475*890*1780

Shelves per Chamber(Normal)

3(pcs)

Model

Artificial Climate Incubator

Parameter

MGC-300H
MGC-350HP

MGC-400H
MGC-450HP

MGC-800H
MGC-850HP

Cubage

300L

450L

800L

Temperature Range

Without Lighting:4~50oC   With lighting:10~50oC

Temperature Control

0.1oC

Temperature Stability

±1oC

Humidity Range
50~90%RH
Humidity Precision
±5~7%RH

Lighting Intensity

0~20000LX
4 steps adjustable

0~25000LX
4 steps adjustable
0~30000LX
4 steps adjustable

Input Power

1650W

2100W

4000W

Electrical Requirements

AC 220V

AC 380V

Ambient Temperature

+5 ~ 40oC

Continuous Working Time

Not less than 180h

Interior Dimension
(mm)W*D*H

520*550*1140

700*550*1140

965*580*1430

Overall Dimension
(mm)W*D*H

830*850*1850

950*850*1850

1475*890*1780

Shelves per Chamber(Normal)

3(pcs)

* Model with “P” is programme control Series.
* Specification test under no load condition: ambient temperature is 20oC,and relative humidity is 50%.
