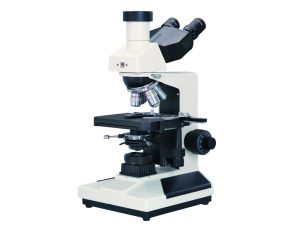

MC-2080 Digital Biological Microscope

Description

Specification
  • Standard configuration

    Model
    MC-2080
    Eyepiece
    WF10X(∅20mm)
    Objective
    Plan achromatic PL 4X/0.10
    Plan achromatic PL 10X/0.25
    Plan achromatic PL 40X/0.65(Spring)
    Plan achromatic PL 100X/1.25(Spring, oil)
    Digital trinocular
    Built-in clear color 1/3” CMOS sensor , the dynamic resolution is 1280X1024(UXGA) , USB2.0 White balance: Automatic/Manual.
    System requirement:

    Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
    OSx(Mac OS X)
    Linux
    Focus system
    Coaxial coarse/fine focus system, the adjustable tensional control and adjustable up stop, minimum division of fine focusing: 2μm
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical ( Size:160mmX140mm, Move range: 75mmX50mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    With field diagram for halogen lamp
    Light source
    6V 20W Halogen lamp with brightness control

Catalog

Download Brochure

Diagram

Dimensions

Optional Accessories

Name
Sort/Technique parameter
NO.
Eyepiece
Wide field   WF16X(Ø11mm)
1051016
Dividing  10X(Ø20mm)  0.1mm/Div
1121010
Filter
Green filter
115002
Yellow filter
115003
Digital trinocular
Built-in clear color 1/2” CMOS sensor , the dynamic resolution is 2048X1536(UXGA).USB2.0
White balance: Automatic/Manual.

System requirement:

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux
014006
