MC-1180

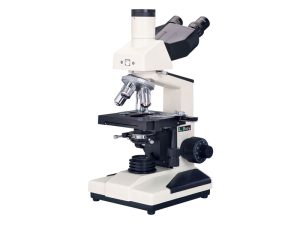

MC-1180 Digtial Biological Microscope

Description

Specification
  •  Standard configuration
    Model
    MC-1180
    Eyepiece
    WF10X(Φ18mm)
    Objective
    Achromatic 4X/0.10
    Achromatic 10X/0.25
    Achromatic 40X/0.65(Spring)
    Achromatic 100X/1.25(Spring, oil)
    Digital trinocular
    Built-in clear color 1/2”CMOS sensor , the dynamic resolution is 1280X1024(UXGA) , USB2.0

    System requirement：

    Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
    OSx(Mac OS X)
    Linux
    Focus system
    Coaxial coarse/fine focus system. Minimum division of fine focusing: 2μm
    Nosepiece
    Quadruple(Frontward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    Light source
    6V 20W Halogen lamp with brightness control
SKU: mc-1180 Category: Tags: , , ,

Catalog

Download Brochure

Diagram

Optional Accessories

Name
Sort/Technique parameter
NO.
Eyepiece
Wide field  WF16X(Φ11mm)
1051016
Dividing  10X(Φ18mm) ¸ñÖµ0.1mm/¸ñ 0.1mm/Div
1021010
Objective
Semi-plan achromatic SP 4X/0.10
2030104
Semi-plan achromatic SP 10X/0.25
2030110
Semi-plan achromatic SP 20X/0.40(Spring)
2030120
Semi-plan achromatic SP 40X/0.65(Spring)
2030140
Semi-plan achromatic SP 100X/1.25(Spring, oil)
2030111
Nosepiece
Quintuple(Frontward ball bearing inner locating)
032001
Filter
Green filter
115002
Yellow filter
115003
Digital trinocular
Built-in clear color 1/2”CMOS sensor, the dynamic resolution is 2048X1536(UXGA).USB2.0

System requirement：

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux
014006
