L3201 Epi-Fluorescence Microscope

Description

  • L3201 Epi-fluorescent microscope is used for fluorescence microscope and transmitted bright field observation. It is equipped with no magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear and high contrast picture in your wide view field. The main body design meets with the ergonomics needs and makes you feel comfortable and relaxed in process of operation. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities,medical treatment, epidemic prevention etc.

  • Features
    ▲  Adopt infinity optical system and modularization function design.
    ▲  Equipped with infinity plan achromatic fluorescent objectives, enable obtain more clearer and brighter image.
    ▲  Wide-field plan eyepieces: field number Ф22mm.
    ▲  Coaxial coarse/fine focus system, with tension adjustable and limit stopper , minimum division of fine focusing: 2μm
    ▲  Transmitted illumination system: Integrated field diaphragm and 6V30W halogen lamp, adding radiator and brightness control.
    ▲  Epi-illumination system: 100W/DC mercury lamp. The voltage of power supply is 220V or 110V.
    ▲  Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography






Specification
  • Standard Configuration
    Model
    L3201
    Eyepiece
    Wide field  WF10X(¦µ22mm)
    Objective
    Infinity plan achromatic objectives
    PL 4X/0.10 (Work distance):19.8 mm
    PL 10X/0.25 (Work distance):5.0 mm
    PLF L40X/0.85£¨spring£©(Work distance):0.42mm(No magnification spherochromatic aberration )
    PL 100X/1.25(Spring, oil) (Work distance):0.36mm
    Eyepieces tube
    Trinocular, Inclination of 30˚.
    Epi-fluorescent illumination system
    Power supply unit, 110V or 220V can be selected.
    Mercury lamp is 100W/DC
    Turnplate Epi-fluorescence illuminator (UV.V.B.G filters system)
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
    Nosepiece
    Quintuple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)
    Transmitted illumination
    system
    Abbe condenser  NA.1.25  Rack & pinion adjustable
    Blue filter and Ground glass
    Collector for halogen lamp illumination and integrated field diaphragm
    6V 30W halogen lamp, adjustable brightness






Catalog

Download Brochure

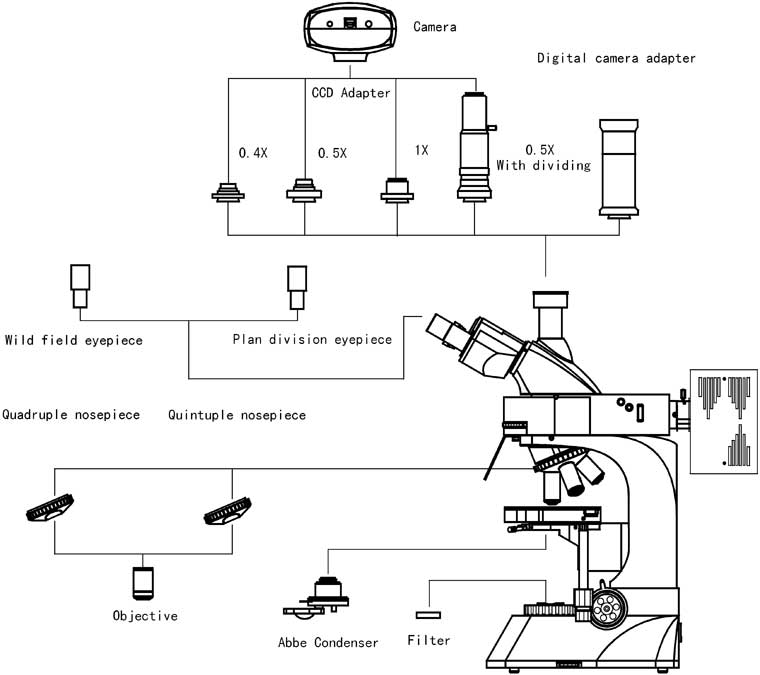

Diagram

Dimensions

Optional Accessories

Name
Sort/Technique parameter
NO.
Eyepiece
Dividing eyepiece(field number:¦µ22mm)    0.10mm/Div
1122010
Objective
Infinity plan achromatic objective PL 60X/0.80(Work distance):0.46 mm
2060160
Infinity plan achromatic fluorescent objective
PL FL10X/0.35(Work distance):2.37 mm
2610110
Filter
Green filter
115002
Yellow filter
115003
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 Video output(380/520 TV line) USB output(0.42 M pixel)
800001
DV-2 With USB output (1.3M,2.0M,3.0M pixel)
800003
DV-3 With video output(380/520 TV line)
800005
Digital camera adapter
CANON(EF)  NIKON( F)
820001
