L1800

L1800 series biological microscopes are equipped with achromatic objectives or semi-plan achromatic, wide field eyepieces. They have clear image, wide field, beautiful sculpt, convenient operation etc. They can be used for medicine, and assay area widely. They are the ideal instruments for medical treatment, teaching demonstration and scientific research.

Features

  • With wide field eyepieces, semi-plan achromatic or achromatic objectives, the field of view is widely and clear
  • Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
  • 6Volt 20Watt Halogen lamp with brightness control

Spec:

Model

L1800A

L1800B

Eyepiece

Wide field WF10X(Φ18mm)

Objective

Achromatic 4X/0.10

Semi-plan achromatic 4X/0.10

Achromatic 10X/0.25

Semi-plan achromatic 10X/0.25

Achromatic 40X/0.65(Spring)

Semi-plan achromatic 40X/0.65(Spring)

Achromatic 100X/1.25(Spring, oil)

Semi-plan achromatic 100X/1.25(Spring, oil)

Eyepiece tube

Binocular(Inclination of 30˚)

Focus system

Coaxial coarse/fine focus, with tension adjustable and up stop the minimum division of fine focusing: 2μm.

Nosepiece

Quadruple(Backward ball bearing inner locating)

Stage

Double layer mechanical (Size:160mmX140mm, Move range: 75mmX50mm)

Abbe condenser

N.A.1.25 Rack & pinion adjustable

Filter

Blue filter

Frosted filter

Collector

For halogen lamp

Light source

6V 20W Halogen lamp with brightness control

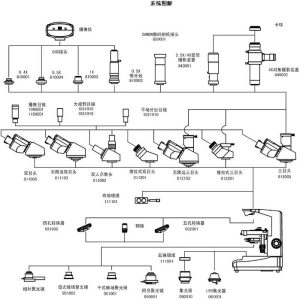

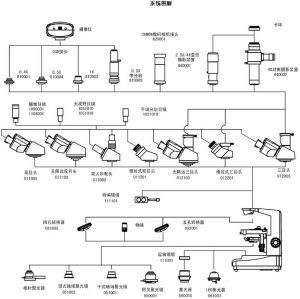

Optional accessories

Name

Sort/Technique parameter

Eyepiece

Wide field  WF16X(Φ11mm)

Dividing   10X(Φ18mm) 0.1mm/Div

Objective

Plan achromatic  4X/0.10

Plan achromatic  5X/0.12

Plan achromatic  10X/0.25

Plan achromatic  20X/0.40

Plan achromatic  40X/0.65(Spring)

Plan achromatic  60X/0.85(Spring)

Plan achromatic  100X/1.25(Spring, oil)

Eyepiece tube

Binocular, Sliding(Inclination of 45˚)

Trinocular, Sliding(Inclination of 45˚)

Trinocular (Inclination of 30˚)

Dual viewing tube (Inclination of 30˚)

Nosepiece

Quintuple(Backward ball bearing inner locating)

Package

Styrofoam

Filter

Green filter

Yellow filter

Light source

LED Collector

Bright and white light

Condenser

Darkfield

Dry

Immersion

Phase contrast unit

Eyepiece

Centering telescope

Objectives

Phase contrast plan achromatic 10X/0.25 PHP

Phase contrast plan achromatic 20X/0.40 PHP

Phase contrast plan achromatic 40X/0.65 PHP(Spring)

Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

(PH-I ) Turnplate phase contrast condenser

(PH-II) Turnplate phase contrast condenser

Flashboard phase contrast condenser

Pull board phase contrast condenser

Infinity optical system

Eyepiece tube

Binocular (Inclination of 30˚)

Trinocular (Inclination of 30˚)

Eyepiece

Centering telescope

Objectives

Infinity plan achromatic 4X/0.10

Infinity plan achromatic 10X/0.25

Infinity plan achromatic 20X/0.40

Infinity plan achromatic 40X/0.65(Spring)

Infinity plan achromatic 100X/1.25(Spring, oil)

Infinity phase contrast plan achromatic 10X/0.25 PHP

Infinity phase contrast plan achromatic 20X/0.40 PHP

Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)

Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, Oil)

CCD adapter

0.4X

0.5X

1X

0.5X with dividing 0.1mm/Div

Camera

DV-1(With USB & video output)

DV-2(With USB output)

DV-3(With video output)

Photography

USB Output

VIDEO Output

Digital camera adapter

CANON Digital camera adapter(A610,A620,A630,A640)

Photograph unit

2.5X/4X Change over photograph attachment with 10X viewing eyepiece

4X Focusing photograph attachment

MD Adapter

PK Adapter

Facility polarize

Polarizer(360° rotatable stage)

Analyzer

Adapter

Input: 230V 50/60HZ   Output: 9V  500mA

Input: 110V 50/60HZ   Output: 9V  500mA
