L Series

SKU: l-serie Category: Tag:

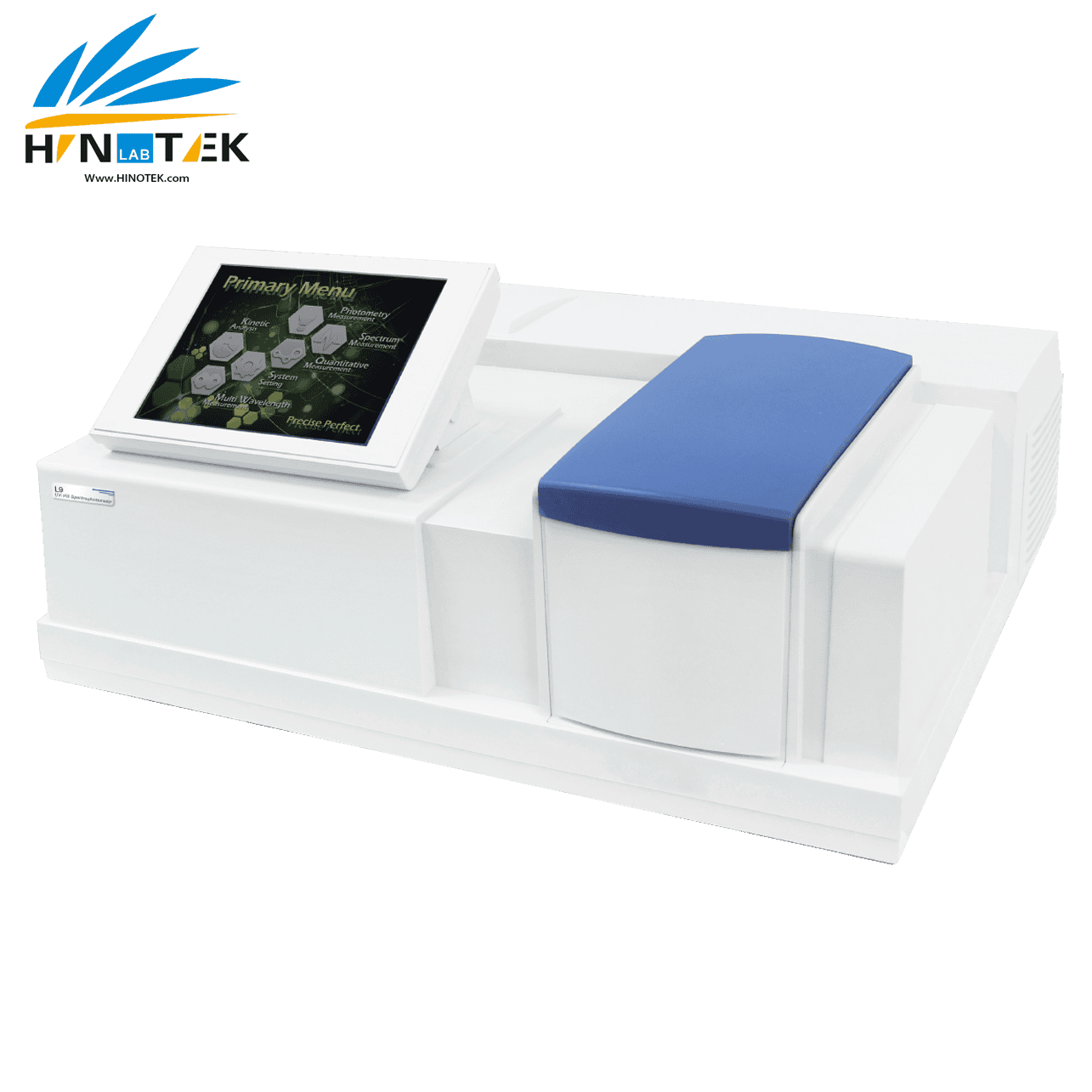

L Series Split Beam UV-VIS Spectrophotometer

* Split beam opbcal system
* automatic wavelength settings
* 8 inch multi color touch screen
* automatic 8 position cuvette holder
* Automatic zero and lull scale adjustment
* Equipped with USB port
* Thermal plotter optional ·Software optional

Common Features
1: Legend series spectrophometers adopt split beam survey optical system, and blazed holographic gratings.They have outstanding test precision and very competitive prices.

2: 8-inch multi color touch screen, cutting-edge user interface, powerful functions, and easy operation.

3: The automated 8 position cuvette holder facilitates the operation under each measurement mode.

4: With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:
·Full-spectrum scanning ·Linear regression
·Detailed spectrum scanning ·Concentration direct reading
·Time-based kinetics determination ·Peak/Valley detecting
·GOTO λ ·Multi-wavelength measurement

5: The equipment is designed with sophisticated power protection system.With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction data.Therefore, it follows a fast initialization when power on.

6: The instrument can be connected with the dedicated printer, which can print testing results, or draw a curve from spectral scanning, fixed wavelength time-based scanning, and linear regression.

7: There is a USB port on the device, and UVwin8 software is optional to order.The device can be connected to a PC, which can not only enhance the performance in data testing and spectrum scanning but also expand the memory to save more testing results.

Specifications

L6S L6 L3S L3
Photometry Split Beam
Monochromator Type Czemy-Tumer
Focal Length 160mm
Grating 1200 lines/mm
Detector Silicon Photocell
Spectrum Bandwidth 2nm
Wavelength Setting 8-inch color touch-screen
Wavelength Range 190-1100nm 3255-1000nm
Wavelength Accuracy ±0.5nm
Wavelength Repeatability ≤0.2nm
Photometric Range 0.0-200.0%T

-0.301-4.000A

0.000-9999C

Photometric Accuracy ±0.3%T

±0.002Abs(0-0.5A)

±0.004Abs(0.5-1A)

±0.5%T
Photometric Repeatability ≤0.15%T

0.001Abs(0-0.5A)

0.002Abs(0.5-1A)

≤0.2%T
Scanning Speed Fast-Medlum-Slow o Fast-Medlum-Slow o
Baseline ≤±0.03%T

(200-1090nm)

o ≤±0.002%T

(335-1090nm)

o
Stray Light ≤0.3%T

(at 200nm Nal,380nm NaNo2)

≤0.05%T

(at 200nm Nal,3600nm NaNo2)

≤0.05%T

(at 360nm NaNo2)

Noise 100%(T)noise≤0.15%(T),0%(T)noise≤0.1%(T) 100%(T)noise≤0.2%(T),0%(T)noise≤0.1%(T)
Drifting ±0.0009Abs/30min(at 250nm and 500nm after 2h warm up) ±0.0009Abs/30min(at 250nm and 500nm after 2h warm up)
Power AC220V±22V 50Hz±1Hz,200W AC220V±22V 50Hz±1Hz,120W
Packaging Size 740mm×630mm×450mm 0.21M3 35kg

Standard Accessories

User manual : 1pc

1cm glass cuvette: 4pcs(L3,L3S only)

1cm quartz cuvette: 2pcs(L6,L6S only)

Power cable: 1pc

Optional Accessories:
Thermal plotter
10mm cuvette holder
50mm cuvette holder
100mm cuvette holder
UV WIN8 Software
