Features

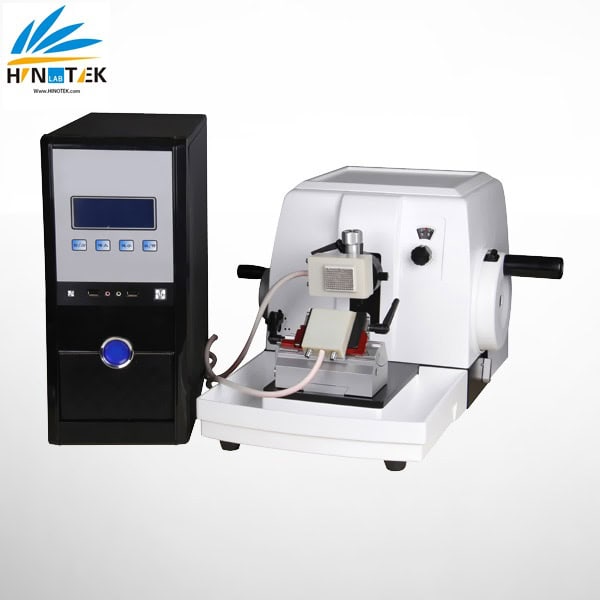

This model combine KD-2268 Manual Microtome and KD-III fast freezing machine. KD-III adopt high-power semi-conductor freezing system and advanced Nano material. LCD shows setting and current temperature, self-temperature control, self-protection systems an defrost function etc.
This model adopt streamline design, advanced function, stable performance, user-friendly. Specimen feed drive is controlled by intelligent control system. Precise electrical mechanical design, Ergonomic concept.
Technical Specification
- Section thickness range: 0～60μm /0～20μm increment 1μm/ 20～60μm increment 5μm
- Specimen retraction range of 90μm can be shut of
- Angle of specimen clamp can be adjusted on 8 degrees X/Y axis
- Best section angle between Cryo-proble and section blade is 60 degrees
- Temperature of defrost display, pre-setting temperature can be stored itself after working
- Temperature of section can be reached after freezing within 1～7 minutes
- Quick freezing systems, energy-saving
- Dual function section: freezing and paraffin us
| Minimum Setting value | 1μm |
| Precision Error | ±1% |
| Maximum Specimen Size | 60×50mm |
| Trimming Setting Mode | 15μm or 35μm |
| Specimen Retraction Range | 90μm |
| Object feed | 30mm |
| Vertical stroke | 70mm |
| Pre-setting temperature range | ambient～-55℃ |
| Maximum temperature range for Cryo-plate | ≥60℃ |
| Maximum temperature range for Cryo-probe | ≥50℃ |
| Maximum size of Cryo-pate | 45 x 40mm |
| Working Voltage | AC220V 50Hz， AC110V 60Hz |
| Power draw | 50VA（KD-2258S）、300VA(KD-Ⅲ) |
| Dimension | 570x500x300mm(KD-2268)，420x190x410mm(KD-Ⅲ) |
| Net weight | 33kg(KD-2268) 8kg(KD-Ⅲ |
