JPL-135 Polarization Microscope

Description
  • JPL135 series are utilized polarize light to observe and research the polarizing characteristic of the matter which has the double refraction.They can be used to medical inspection, such as the frame detail of the nerve fiber, the animal muscle, the plant fiber and the crystal of the tooth, bone, hair and alive cell etc. It can observe the fine frame of the biochemistry salt crystal that the fine frame can’t be observed for natural light.

    Features
    ▲       Equipped with wide field eyepieces and achromatic objectives, the field of view is widely and clearly.
    ▲       Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    ▲       6V 20W halogen lamp transmission illumination, adjustable brightness.
Specification
  • Standard Configuration
    Model
    JPL135
    JPL135A
    Eyepiece
    Wide field  WF10X(Φ18mm)
    Objective
    Achromatic objectives  4X/0.10
    Achromatic objectives  10X/0.25
    Achromatic objectives  40X/0.65 (Spring)
    Achromatic objectives  100X/1.25(Spring, oil)
    Eyepieces tube
    Binocular, Inclination of 30˚
    Polarization analyzer
    Sliding
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple (Frontward ball bearing inner locating)
    Stage
    Rotatable stage(Diameter:¦µ120mm)
    Double layer mechanical stage with (¦µ100mm) rotatable stage (Size:135mmX125mm Moving range:70mmX30mm)
    Abbe condenser
    NA.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Polarizer
    360° rotatable stage
    Collector
    For illumination with halogen lamp With field diaphragm
    Illumination unit
    With polarizer,6V 20w, halogen lamp, adjustable brightness
SKU: jpl-135-series Category: Tags: ,

Catalog

Download Brochure

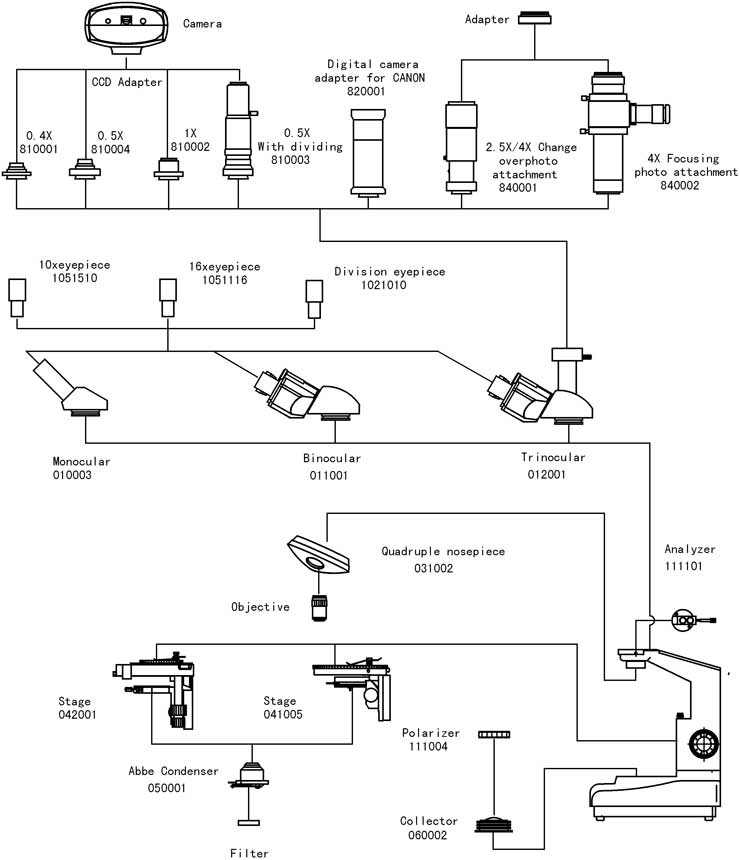

Diagram

Dimension

Optional Accessories

Name
Sort/Technique parameter
NO.
Eyepiece
Wide field  WF16X(Φ11mm)
1051116
Dividing  10X(Φ18mm) 0.1mm/Div
1021010
Eyepieces tube
Monocular , 360˚rotatable, inclination of 30˚
010003
Trinocular, ,inclination of 30˚,observe and photograph at the same time
012001
Filter
Green filter
115002
Yellow filter
115003
CCD adapter
0.4X
810001
0.5X
810004
1X
810002
0.5X with dividing 0.1mm/Div
810003
Camera
DV-1 With USB & video output
800001
DV-2 With USB output
800003
DV-3 With video output
800005
Photo unit
2.5X/4X Change over photograph attachment with 10X viewing eyepiece
840001
4X Focusing photograph attachment
840002
MD Adapter
840003
PK Adapter
840004
Digital camera adapter
CANON(A610,A620,A630,A640)
820001
