Features:

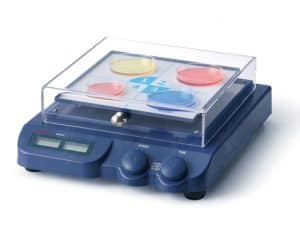

◎ DSR-22 is the upgraded version of the traditional RPR, TRUST, VDRL screening and test orbital shaker for syphilis. It can be also widely used in mixing for various kinds of flat type lab wares, such as petri dish, culture
plate, etc.
◎ Equipped with Brushless motor, it can run smoothly and quietly, thus guarantee a long service life.
◎ LCD with backlight can display the current speed, time and operation mode, convenient for reading and setting.
◎Precise digital time and speed setting can easily carry out the continuous operation mode.
◎ Safe operation protection function adopted.
◎ Wide-range voltage design. Avoid the interference to the equipment by instable voltage.
Main Technical Data:
| Operation method | Circling |
| Circling diameter | 22mm |
| Max. Loading weight | 2kg |
| Speed range | 40-350rpm |
| Timing range | 1-19h59min |
| Running mode | Timing/Continuous |
| Input voltage (frequency) | AC100-240V(50/60Hz) |
| Input power | 20w |
| Working plate size | Common type 315x315mm With cover:255x255mm |
| Protective class | IP21 |
| Permissible ambient temperature | 5-50°C |
| Permissible relative moisture | 80% |
| Dimension | 420x355x180mm |
| Net. Weight | Common type:7.0kg With cover 7.8kg |
