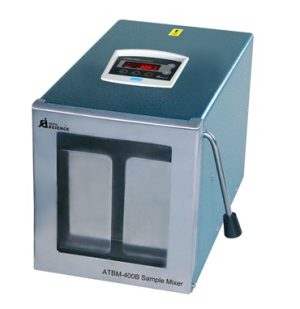

ATBM-400B

Beat cabin part in contact with aseptic bags made of sanitary stainless steel chassis and other structural parts made of high quality stainless steel, the lid is made of high-quality high-strength aluminum alloy, the surface coating of imported high-strength,specially designed high corrosion coatings. Overall machine durable, and beautiful.
Three sets of LED digital display to run to set the time, running time and slap speed.
With window safety gate is easy to observe and ensure the safe operation, the other can easily set off for easy cleaning.

The knob on the rear of the machine can easily adjust the distance between the slap board and security doors, in order to adapt to different crushing requirements. (Knob per revolution pitch increase/decrease 1mm)
With a wetted plate to prevent the sample with a rupture caused by external contamination.
The controller has a variety of models is optional, and can be placed in a convenient location.
Can be connected to the computer by the computer settings.

Slap warehouse capacity:  30ml-400ml
Slap board and security doors pitch adjustable range:       2mm-10mm (knob a week increase / reduce 1mm)
Slap the number (SPS file):   5, 6, 7, 8, 9 times / sec.
Timed slap time: 30s, 60s, 90s, 120s, 180s, 210s, 360s (Quick Setup) 5-999 seconds, continuously adjustable (fine set)
Power supply: 220V/50HZ 200W
Dimensions:  217Lx240Wx364H (mm)
Weight:  about 17kg
