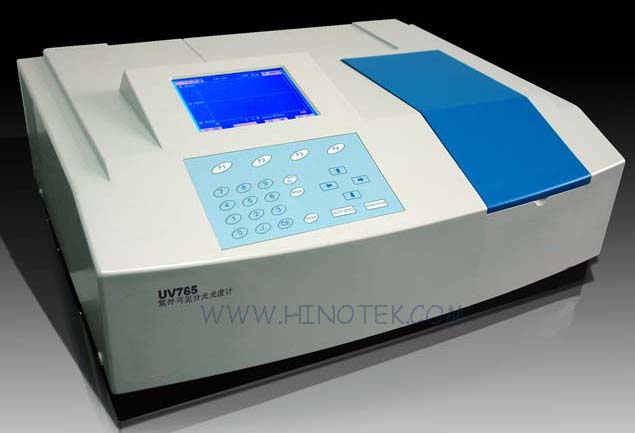

UV765 UV-VIS Spectrophotometer |
|
Product Overview
UV765 UV-Visible spectrophotometer is a new generation intelligent instrument, which is elaborated with sophisticated design and function and the optical system and electronic system embody the novel design concept.
The instrument applies new type of asymmetric splitting technology and has high double-beam stability, the beam with high luminous flux which ensures the high signal to noise ratio.
The high resolution, low stray light and large LCD display of the instrument can meet various application requirements such as daily analysis and scientific research in different areas. |
| |
Outstanding Stability
The novel ratio type double-beam technology ensures the high stability of instrument's performance. The high signal-noise ratio and repeatability of the measurement control raise the flatness of the spectrum scanning baseline to a new level. |
Excellent Optical Properties
High wavelength resolution, high wavelength accuracy, and super low stray light together enable the measurement of the absorbance of ultraviolet and visible area accurate, and the high density sample injection can be measured directly. |
Automatic Operation
The instrument has a 320*240 pixel, 6 inch graphic LCD display, a simple and clear thin film keypad, equipped with 40-line thermal sensitive plotter and powerful computer, which empowers the instrument to carry out a lot of functions, such as automatic photometric measurement, quantitative determination, spectrum scanning and time scanning. |
Large Automatic Sample Cell
The sample is large and contains a 10mm colorimetric cell support. The automatic 8-cell holder makes the 8 sample cells to move at the same time. |
Independent Lamp Source Cell
The source lamp cell can adjust the best position of lamp automatically. The imported deuterium lamp can do the positioning precisely. The replacement of lamp can be made rapidly and easily. |
Main Device Control & PC Control
For the lab which requires the instrument with compact structure, easy-to-operate characteristic, high performance and predefined measurement methods, UV-765 main device control system is an ideal choice. |
| For the user who requires PC controlling equipment, the communication with the main device can be realized through the USB interface which empowers the PC to control the device. Besides, the device has multi-functional measurement result processing ability and the storage is very large. |
| |
| Technical Specifications |
| Wavelength range | 190nm~1100nm | | Wavelength accuracy | ±0.5nm | | Wavelength repeatability | ≤0.2nm | | Transmission range | 0~200%T | | Absorbance measurement | -0.301 A~3.000A | | Transmission accuracy | ±0.3%T | | Transmission repeatability | <0.15%T | | Drift | ≤0.001A/h (at 500nm) | | Baseline linearity | ±0.002A | | Stray light | ≤0.05% T | | Noise | 100%(T) Line Noise ≤0.15%(T) ; 0%(T) Line Noise ≤0.1%(T) | | Scanning speed | Fast, Medium, Slow | | Spectrum bandwidth | 2nm |
|
| |
Standard configuration:
1. Main instrument 1
2. Power cable 1
3. 10mm Quartz cell 2
4. 10mm Cell holder 1
5. Fuse (3A) 2
6. Printer FD-TP40 1
7. Printing paper 2
8. Signal cable 1 |
| |
Optional accessories:
1. 10mm Glass cell
2. 10mm Quartz cell
3. 10mm Cell holder
4. Tungsten-halogen lamp(12V 20W)
5. Deuterium lamp L8932
6. Printer FD-TP40 |
| |
Over dimension & weight:
Shipping package dimension: 700*600*400mm
Gross weight: 27kg
Net weight: 18kg |
| |
| |
| |
