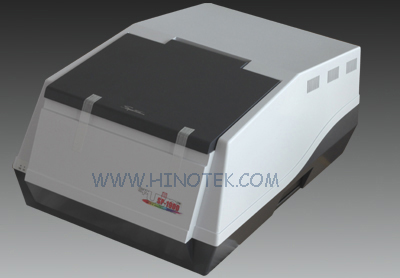

SP-1900 Series Double Beam UV-visible Spectrophotometer | | | The SP-1900 is a double beam spectrophotometer. The SP-1900, which inherits strongpoint of all mature productions, and also uses the classic double-beam theory, makes the test result more precise, stable and reliable. The SP-1900 is ideal to widely use most of test filed such as clinical laboratory, biochemical laboratory, pharmacy, petrol chemical laboratory, environmental protection and various fields of quality control. This user’s manual provides the description of the SP-1900, a list of main specifications, functions introduction and usual operations. Available accessories.
This instrument is compact, easy-to-use, and ruggedness. The large sample compartment accepts various accessories and cell from 10mm to 100mm path length. The built-in RS-232 serial interface enables the instrument to be connected to a computer. SP-1900 series UV-Vis spectrophotometer includes 3 models totally. See table 1900 Series Spec. |
| MODEL | SP-1900 | SP-1901 | SP-1920 | | Type | Double Beam Asymmetrical Vertical Test Optical Path Technology（patent） | | Monochromator | Czerny-Turner, Focus300 | | Grating | 45*45mm, 1800 lines/mm | | dectector | High performance digital dual-detector photoelectric cell | | bandwidth(nm) | 0.5, 1, 2, 4 | 1 | 0.5, 1, 2, 4 | | wavelength range(nm) | 190-1100 | | wavelength display(nm) | 0.1 | | wavelength set(nm) | 0.1 | | wavelength accuracy(nm) | ±0.30 | | wavelength repeatability(nm) | ≤0.1 | | Scan speed(nm) | wavelength movespeed 6000nm/min,wavelength scan speed 10-3000nm/min | | light source switch(nm) | 300-360 | | stray light（220、360nm） | ≤0.01%T | | optical structure | double beam | | Photometric mode | A (Abs), T (%T), Energy (E) | | Photometric range | 0-200.0%T(T), -0.3-4A(A), 0.000-9999C | | Photometric accuracy | ±0.3% T NIST930e standard filter | | Photometric repeatability | 0.1% T 0.001Abs(0-0.5Abs) 0.002Abs(0.5-1Abs) | | Steability | ±0.0004A/Hour（at 500nm one hour preheat） | | Baseline flatness | ±0.0005A | | Noise | ±0.0004A（spectrum bandwidth 2nm,low speed wavelength scan） | | Display | PC connection、display in PC screen | 6.4inch big touch operation screen | | Operation | PC connection、control by PC | Touch screen | spectrum scan | time scan | standard curve | photometric analysis | | Application software | win-sp5.2 for 1900 | | Signal output | USB，RS-232C | | Sample compartment (mm) | 225*114 (length*width) | | Standard cell holder (mm) | 2*10 (1 position） | | Standard glass cell(mm) | 10（4pcs） | | Standard quartz cell (mm) | 10（2pcs） | | Power requirement | 110/220VAC, 50/60Hz |
| | Note: There may not be special notifications when the technical specification,profile and configuration changed. Please, the products will be in agreement with the real models. | | |
|
