Centrifuge arrow Mini Centrifuge & Other Centrifuge arrow Mini-13K/14K Centrifuge

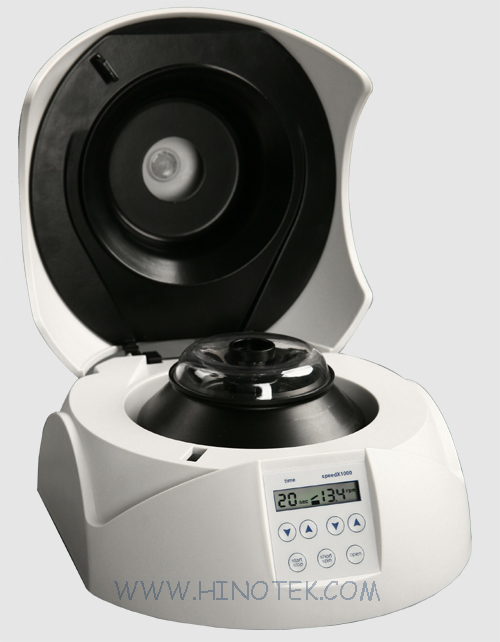

Mini-13K / Mini-14K Centrifuge


Features:
1. Extremely quiet operation
2. Easy-to-follow LCD display
3. Capacity: 12*1.5/2.0ml tubes
4. Separate short-spin key
5. Low sample heating (only 12°C after 30min, at max.speed)
6. Autoclavable rotor (121°C, 20min)
7. RMP/RCF setting as required
8. Includes standard rotor made of anodized aluminum
9. Timer can be set up to 99min
10.The small size of the unit makes it convenient for benchtop use or in a hood or in refrigerated environments

Spec:
Model
Mini-13K
Mini-14K
Power requirement
100W
105W
Max. rotational speed
13400 rpm
14,500 rpm
Relative Centrifugal force (RCF)
12100 x g
14000 x g
Timer
20 Sec ~ 99min
Acceleration time to max. speed
40s
42s
Braking time from max. speed
52s
55s
Dimensions (W*D*H)
240*212*138mm

Optional Blocks
Adaptors for 0.5~0.6ml Tubes
Adaptors for 0.2ml Tubes
:
