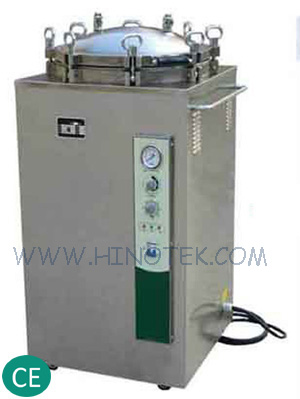

MODEL LS-B35L/50L/75L/100L |
(VERTICAL PRESSURE STEAM STERILIZER) |
| |
|
| |
| |
| Characteristics: |
| 1. Fully stainless steel structure. |
| 2. Indicator light indicates working state. |
| 3. Over temperature&over pressure auto-protection. |
| 4. Double scale indication pressure gauge. |
| 5. Safe protection of water lacking. |
| 6. Automatically shut off with beep reminding after sterilization. |
| 7. Easy to operate,safe and reliable. |
| 8. With two stainless steel sterilizing baskets. |
| |
| Specification: |
| Model | LS-B35L | LS-B50L | LS-B75L | LS-B100L | | Valid volume | 35L(φ318*450mm) | 50L( φ340*550mm) | 75L(φ400*600 mm) | 100L(φ440*650mm) | | working pressure | 0.22MPa | | Working temperature | 134 Deg.C | | Max working pressure | 0.23 Mpa | | Heat average | <=±1Deg.C | | Timer | 0~60min | | Adjustment of temperature | 105~134 Deg.C | | Power | 2.5KW/AC220V 50Hz | 3KW /AC220V 50Hz | 4.5KW /AC220V 50Hz | | Overall dimension | 480*460*850(mm) | 520*520*980(mm) | 560*560*980(mm) | 590*590*1080(mm) | | Transport dimension | 570*550*970(mm) | 590*590*1110(mm) | 650*630*1150(mm) | 680*650*1220(mm) | | N/G. W: | 56Kg/42Kg | 68Kg/50Kg | 90Kg/70Kg | 105Kg/85Kg |
|
| |
